Newly developed Raritan Rack PDU with added outlet technology and innovative intelligence features.

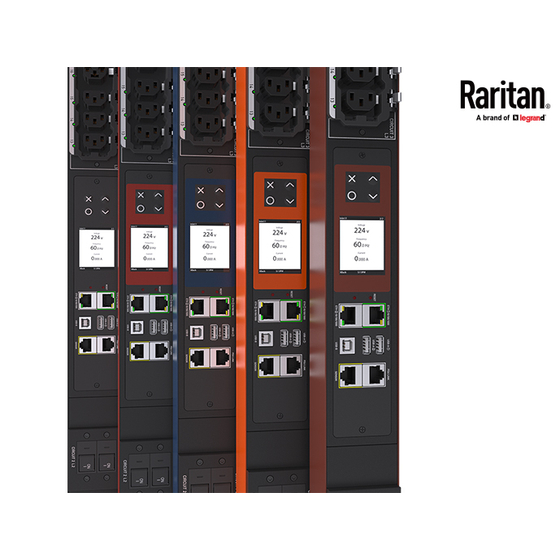

The newly developed Raritan PX4 Rack PDU has been designed not only to meet current power management needs but also to anticipate future power management challenges. By combining over 30 years of proven intelligence with industry-recognized outlet technology, it achieves the highest standards of visibility, flexibility, and security. We offer mounting brackets for installing the intelligent PDU in Setsu Metal Industry's 19-inch racks. We can also manufacture brackets for installation in racks from other manufacturers. Please consult us separately. Setsu Metal Industry not only serves as a Raritan sales agent but also provides a wide range of services as a server rack manufacturer, including the supply of racks, installation/wiring of PDUs, and construction work.
Inquire About This Product
basic information
An Intelligent PDU refers to a Power Distribution Unit (PDU) that supplies power to servers (computers) housed in server racks. In a standard PDU (basic), measuring power, monitoring the environment, and controlling outlets (turning them on and off) require manual intervention, which can be very labor-intensive when dealing with a large number of units. In the case of an Intelligent PDU, it is equipped with features that allow for monitoring displays on the PDU itself, as well as remote measurement and control (from distant locations), which helps reduce costs.
Price range
Delivery Time
Applications/Examples of results
Data center
Detailed information
-
HDOT CxⓇ outlet combining IEC C13 and C19 outlets.
-
45-degree input socket
-
Installation example of the Data Center Rack SDR Series
-
Example of PDU mounting bracket installation *For inquiries about the mounting bracket, please contact us separately.
-
Intelligent PDU (0U type)
-
Intelligent PDU (1U type)
-
Intelligent PDU (1U type) rear
catalog（1）
Download All Catalogs
Company information
We can accommodate all requests regarding 19-inch racks for electronic equipment, enclosures (boxes), trunk cases, and special specifications, so please feel free to consult with us.
