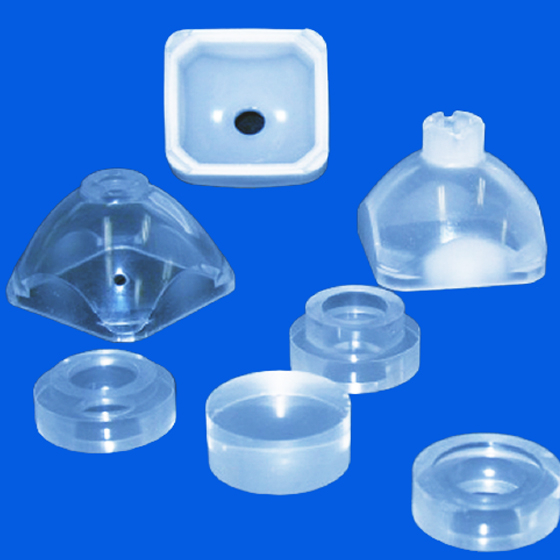

The world's first sintered quartz glass made using a ceramic powder pressing method.
Sintered quartz is a completely new quartz glass technology made possible by applying the powder pressing method of ceramics developed by Yamaki Electric. Due to its extremely low thermal expansion rate, it is resistant to rapid heating and cooling, making it ideal as a refractory material. It can be offered at a low cost because it does not require special equipment. It also enables the creation of shapes that were difficult to achieve with traditional pressing methods. Additionally, since it does not use a melting furnace, it can accommodate small lot sizes. 【Features】 - Sintered quartz glass made using the powder pressing method of ceramics - Extremely low thermal expansion rate, making it resistant to rapid heating and cooling, and ideal as a refractory material - Can be offered at a low cost as it does not require special equipment - Enables the creation of shapes that were difficult to achieve with pressing - Can accommodate small lot sizes as it does not use a melting furnace - Mass production of identical shapes is possible using molds For more details, please contact us or download the catalog.
Inquire About This Product
basic information
【Specifications】 ○ Accuracy / Basic Tolerance ±1 to 2% ○ Applications / Structural materials, boats, crucibles, electronic components, mirrors ○ Size / Up to 10 to 40mm * Pipe-shaped and thin plates cannot be manufactured. ● For more details, please contact us or download the catalog.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ○ Materials for physical and chemical applications such as beakers and flasks, and optical fibers. ○ Various physical and chemical laboratory instruments, high-purity distilled water production equipment, solvent distillers, reactors, quartz wool, etc., for corporate research and development and applications in the field of physical and chemical sciences. ● For more details, please contact us or download the catalog.
catalog（1）
Download All Catalogs
Company information
Yamaki Electric Co., Ltd. was founded in 1897, over 100 years ago. In 1949, it reorganized Yamaki Shoten and was reborn as Yamaki Electric Co., Ltd. We began manufacturing and selling high-voltage distribution insulators, which are part of the system for safely delivering electricity, and now hold a 50% market share. Many power lines in Japan now use insulators from Yamaki Electric Co., Ltd. By always keeping "research and development," one of our corporate principles, in mind and continuing to practice it, we have gained trust and maintained long-standing relationships with domestic power companies. We will continue to listen to consultations on how we can provide new value, using not only what we have excelled at so far but also the know-how we have accumulated, and continue our research and development.
