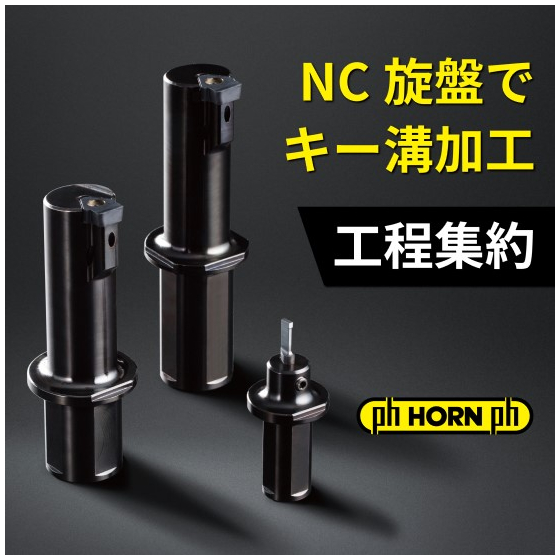

Keyway machining with NC lathe. Achieving process consolidation and cycle time reduction.
In the automotive industry's drive component manufacturing, precision and durability of parts are essential. Particularly, keyway machining is directly linked to the fitting accuracy of components and the reliability of power transmission, making high-precision processing indispensable. Traditional machining methods require multiple processes such as setup changes and positioning, leading to increased time and costs. By using HORN-manufactured broaching tools, keyway machining can be performed on NC lathes, addressing these challenges. 【Application Scenarios】 - Keyway, hex hole, and square hole machining on NC lathes - High-precision machining of fitting parts for drive components - Consolidation of processes in complex machining 【Benefits of Implementation】 - Reduction of process time by eliminating setup changes - Improvement in product quality through the realization of high-precision key widths - Significant reduction in cycle time (example: from 50 minutes to 20 minutes)
Inquire About This Product
Related Videos
basic information
**Features** - Achieves stable processing and finishing surfaces with an internal lubrication holder. - Standard lineup of cutting edge shapes for general machining and broaching units. - Compatible with hex holes, square holes, Torx, and spline gears (special items) in addition to keyways. - High-rigidity holder with a unique clamping shape. **Our Strengths** Founded in 1910, we have been supporting manufacturing sites for many years as a specialized trading company for machine tools. In partnership with outstanding suppliers both domestically and internationally, we provide progressive and high-quality services that contribute to our customers' profitability. In particular, we contribute to the efficiency and quality improvement of manufacturing sites through the provision of high-precision broaching tools from Germany's HORN. We offer a response speed that is unexpected from a European manufacturer, a wide range of products, and the ability to accommodate short delivery times for special items.
Price range
Delivery Time
Applications/Examples of results
[Applications / Examples of Achievements] - Keyway machining - Hexagonal hole machining - Square hole machining - Torx machining - Gear broaching (custom products available) *For more details, please refer to the PDF document or feel free to contact us.*
catalog（4）
Download All Catalogs
Company information
We are a specialized trading company for machine tools that started operations in 1910 in Kyoto as Izushi Shoten, dealing in cast iron materials, conductive tools, and adjustment belts. Since our founding, we have consistently supported the manufacturing field as a trading company. The manufacturing landscape is evolving daily, with new technologies being introduced one after another. It is our mission and joy to be entrusted with the work that contributes to the development of such manufacturing. Currently, we are active under partnerships with 500 domestic companies and 20 overseas companies, primarily in Europe, with excellent supplier manufacturers, and our mission is to continuously provide our customers with progressive and high-quality services. We aim to contribute to our customers' profits and, without hesitation, work hard for the development of society by delivering unconventional services, in other words, "creating value." Please look forward to it.
