Achieving keyway, hex hole, and square hole machining with NC lathes. Process consolidation and cycle time reduction.

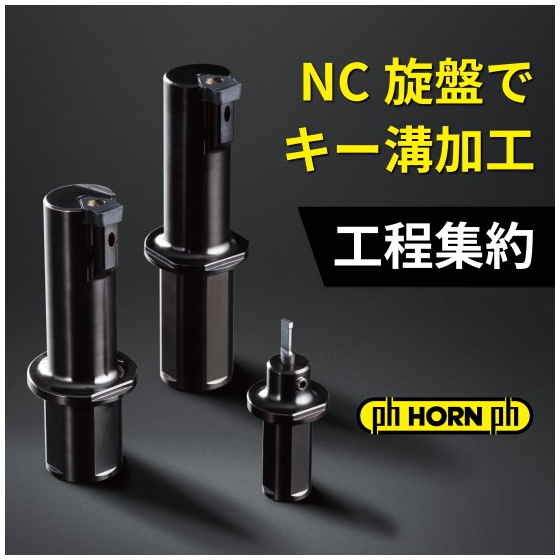

In the main spindle of machine tools, high-precision keyway machining is required. In particular, the consolidation of processes and the maintenance of machining accuracy in keyway machining, which is essential for the precise positioning of parts and power transmission, are key to improving production efficiency and ensuring quality. Improper machining can lead to a decline in part performance and increased costs due to reprocessing. The broaching tools manufactured by HORN enable keyway machining on NC lathes, eliminating the hassle of setup changes and achieving high-precision machining. 【Application Scenarios】 - Keyway, hexagonal hole, and square hole machining on NC lathes - Process consolidation on multi-tasking machines - Reduction of setup and positioning tasks 【Benefits of Implementation】 - Reduction of work time due to process omission - Achievement of high-quality key width accuracy - Examples of cycle time reduction by approximately 60% (from 50 minutes to 20 minutes)
Inquire About This Product
Related Videos
basic information
【Features】 - Achieves stable processing and finishing surfaces with an internal lubrication holder. - Standard lineup of cutting edge shapes for general machining and broaching units. - Compatible with hex holes, square holes, Torx, and spline gears (special products) in addition to keyways. 【Our Strengths】 IZUSHI is a specialized trading company for machine tools that has supported manufacturing sites since its establishment in 1910. With partnerships with 500 domestic companies and 20 overseas manufacturers primarily in Europe, we consistently provide progressive and high-quality services to our customers. Through the import and sale of HORN products, we promote "value creation" that contributes to improving our customers' profitability.
Price range
Delivery Time
Applications/Examples of results
【Applications / Examples of Achievements】 - Keyway machining - Hexagonal hole machining - Square hole machining - Torx machining - Gear broaching (custom items available) *For more details, please refer to the PDF document or feel free to contact us.
