Achieving key groove processing with NC lathes, leading to process consolidation and reduced cycle time.

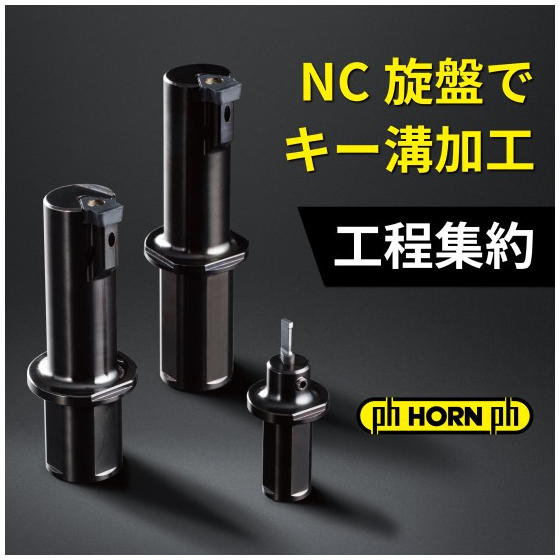

In the construction machinery industry, particularly in the manufacturing of hydraulic cylinders, the precision and durability of parts are directly linked to the overall performance of the product. Keyway machining plays an important role in the fitting and power transmission of parts, but it requires high precision and efficiency. Traditional machining methods can present challenges, such as increased processes and time-consuming setups. Our HORN-made broaching tools enable keyway machining on CNC lathes, addressing these challenges. 【Application Scenarios】 - Keyway machining of hydraulic cylinder components - Process consolidation on CNC lathes - Machining of parts requiring high precision in key width 【Benefits of Implementation】 - Reduction of labor and time by eliminating setup changes - Reduction in cycle time (example: approximately 60% shorter) - Stable machining and high-quality finishing surfaces due to internal lubrication
Inquire About This Product
Related Videos
basic information
【Features】 - Achieves stable processing and finishing surfaces with an internal lubrication holder. - Standard lineup of cutting edge shapes for general machining and broaching units. - In addition to keyways, also compatible with hex holes, square holes, Torx, and spline gears (special items). 【Our Strengths】 Founded in 1910, we have been supporting manufacturing sites as a specialized trading company for machine tools for many years. Through partnerships with excellent suppliers both domestically and internationally, we provide progressive and high-quality services that contribute to our customers' profitability. In particular, we support the resolution of challenges in our customers' manufacturing sites through the import and sale of high-precision cutting tools from Germany's HORN. We are committed to pursuing unconventional services, or "creating value," and providing services that exceed our customers' expectations.
Price range
Delivery Time
Applications/Examples of results
【Applications / Examples of Achievements】 - Keyway machining - Hexagonal hole machining - Square hole machining - Torx machining - Gear broaching (custom items available) *For more details, please refer to the PDF document or feel free to contact us.
catalog（4）
Download All Catalogs
Company information
We are a specialized trading company for machine tools that started operations in 1910 in Kyoto as Izushi Shoten, dealing in cast iron materials, conductive tools, and adjustment belts. Since our founding, we have consistently supported the manufacturing field as a trading company. The manufacturing landscape is evolving daily, with new technologies being introduced one after another. It is our mission and joy to be entrusted with the work that contributes to the development of such manufacturing. Currently, we are active under partnerships with 500 domestic companies and 20 overseas companies, primarily in Europe, with excellent supplier manufacturers, and our mission is to continuously provide our customers with progressive and high-quality services. We aim to contribute to our customers' profits and, without hesitation, work hard for the development of society by delivering unconventional services, in other words, "creating value." Please look forward to it.
