C-200 Surface Oil Film Meter - Can stably detect even with a fluctuating liquid surface.

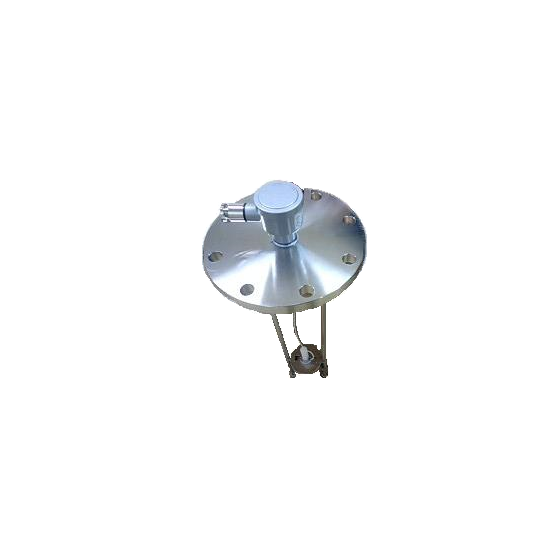

Surface Oil Film Meter C-200 Surface Oil Film Meter - Can detect stably even with a fluctuating liquid surface It detects the oil film on the water surface and outputs a relay signal. ● It can detect stably even with a fluctuating liquid surface. ● Power supply options include DC24V, AC110/220V, and AC120/240V. ● It can also accommodate materials suitable for sanitary applications. As the water surface level fluctuates, the detection electrode attached to the floater moves up and down in response. The change in capacitance of the detection electrode distinguishes between the oil film and the water surface.
Inquire About This Product
basic information
【Amplifier Unit Specifications】 Model: C-200 Power Supply Voltage: AC100/200V ±10% 50/60Hz Power Consumption: Approximately 2W Operating Ambient Temperature: -10℃ to 55℃ Relay Contact Capacity: AC110 0.5A / 220V 1A External Dimensions: W144 X H220 X D100 Material: Aluminum Die Cast Weight: Approximately 2kg 【Detection Unit Specifications】 Operating Ambient Temperature: -10℃ to 55℃ Detection Stroke: 340mm Mounting Flange: JIS10K150AFF Cable Length: 5m External Dimensions: Φ280 X L713 Material: SUS304 Weight: Approximately 12kg
Price range
Delivery Time
Applications/Examples of results
Oil film detection in drainage pits Oil film detection in tank yards Oil film detection in underground tanks Oil film detection in boiler drain tanks
Detailed information
-
Detection of oil films in drainage pits By detecting oil films in rainwater drainage pits and factory wastewater pits, we can proactively avoid violations of pollution regulations.
-
Detection of oil film in tank yards By detecting oil film from tank leaks, it is possible to proactively avoid violations of pollution regulations. Additionally, it helps in preventing fires.
-
Detection of oil film in underground tanks By detecting oil leaks and oil films in tanks, you can proactively avoid violations of pollution regulations. Furthermore, it also helps in preventing fires.
-
Detection of oil film in the boiler drain tank Prevents oil contamination in the water supplied to the boiler in advance.
