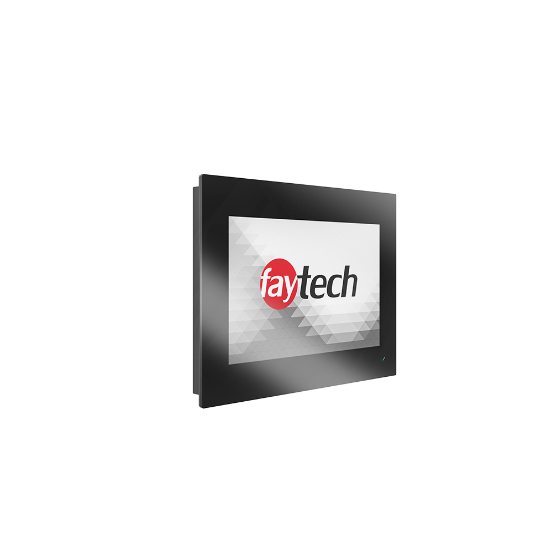

10.1" Open frame capacitive touch monitor, high brightness 1000cd/m2, outdoor use, IR/UV protection, optical bonding.
【faytech FT101TMCAPOFHBOBOD Features】 ■ 10.1-inch wide TFT LCD ■ Physical resolution 1280 × 800 ■ Supports high brightness of 1000 cd/m² ■ Supports IR/UV protection ■ Front waterproof and dustproof with IP65 rating ■ 10-point multi-touch capacitive touch panel ■ 1.1mm thick cover glass with surface hardness of 7H ■ Optical bonding of touch panel and LCD panel ■ A+ grade LED backlight panel with a lifespan of 100,000 hours ■ Built-in audio speakers (2W×2)
Inquire About This Product
basic information
Specifications - Panel: 10.1-inch TFT LCD - Physical pixels: 1280 × 800 - Display area: 216.96 × 135.60 mm - LCD panel brightness: 1000 cd/m² - Touch panel: Projected capacitive (10-point multi-touch), surface hardness 7H, anti-glare - Input connectors: HDMI (1.3) x 1, VGA x 1, DP x 1, PC-Audio x 1, USB x 1 for touch panel, Serial Port RS232 x 1 - Viewing angle: 170° / 170° - Protection: Waterproof and dustproof: Front IP65 / Back IP40 - Input power / Power consumption: 100-240V AC/DC active switching; 12V DC-Out / 14W - Operating temperature: -10 to 50°C (with airflow) - Certifications: FCC, CE - Mounting method: VESA 100 x 100mm - Dimensions / Weight: 279.0 × 209.8 × 57.1mm / 1.65 kg - Warranty period: 1 year
Price information
Open price
Delivery Time
P4
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Outdoor use, monitors for PCs, video equipment, etc. on ships.
Line up（1）
| Model number | overview |
|---|---|
| FT101TMCAPOFHBOBOD | 10.1-inch CAPACITIVE OPEN FRAME TOUCH MONITOR, outdoor | 1000 cd/m2 | 100k hours LED MTBF | ceramic printing | IR/UV Protection |
