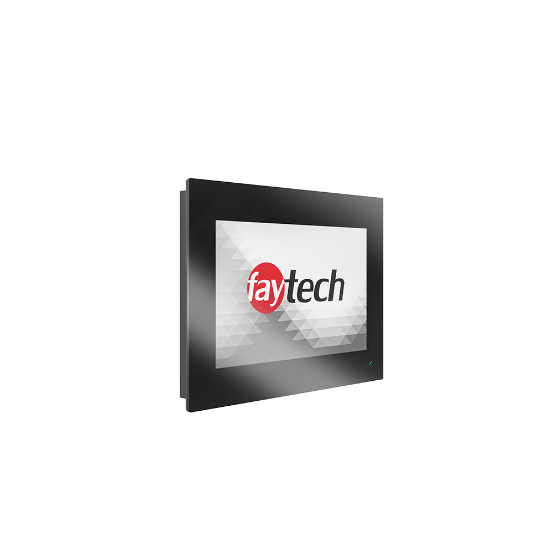

15" Open frame capacitive touch monitor, high brightness 1000cd/m2, outdoor use, IR/UV protection, optical bonding.
【faytech FT15TMCAPOFHBOBOD Features】 ■ 15-inch wide TFT LCD ■ Physical resolution 1024 × 768 ■ Supports high brightness of 1000cd/m² ■ Supports IR/UV protection ■ Front waterproof and dustproof IP65 compliant ■ 10-point multi-touch capacitive touch panel ■ 1.1mm thick cover glass with surface hardness of 7H ■ Optical bonding of the touch panel and LCD panel ■ A+ grade LED backlight panel with a lifespan of 100,000 hours ■ Built-in audio speakers (2W×2)
Inquire About This Product
basic information
Specifications - Panel: 15-inch TFT LCD - Physical Pixels: 1024 × 768 - Display Area: 304.1 × 228.1 mm - LCD Panel Brightness: 1000 cd/m2 - Touch Panel: Projected capacitive (10-point multi-touch), surface hardness 7H, anti-glare - Input Connectors: HDMI (1.3) x 1, VGA x 1, DP x 1, PC-Audio x 1, USB x 1 for touch panel, Serial Port RS232 x 1 - Viewing Angle: 176° / 176° - Protection: Waterproof and dustproof: Front IP65 / Rear IP40 - Input Power / Power Consumption: 12V DC-Out / 19W - Operating Temperature: -10 to 60°C (with airflow) - Certification: FCC, CE - Mounting Method: VESA 100 x 100mm - Dimensions / Weight: 368.0 × 296.8 × 62.6mm / 2.05 kg - Warranty Period: 1 year
Price information
Open price
Delivery Time
P4
※The delivery date may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Outdoor use, monitors for PCs and video equipment on ships, etc.
Line up（1）
| Model number | overview |
|---|---|
| FT15TMCAPOFHBOBOD | 15-inch capacitive open frame touch monitor RTD2556 outdoor | 1000 cd/m2 | 100k hours LED MTBF | ceramic printing | IR/UV protection |
