Cold cathode mini U-tube ultraviolet lamp UVCCU-M series
Heat-tech Cold Cathode Mini U-Tube UV Lamp UVCCU-M Series

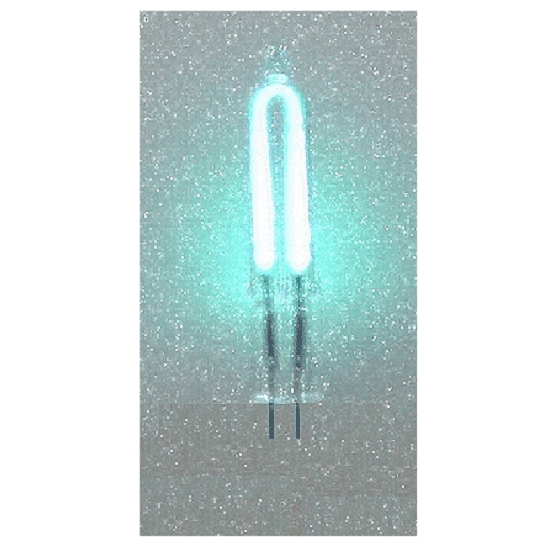

Small ultraviolet lamp with a cold cathode type and a diameter of φ4.5mm.
The UVCCU-M is a small cold cathode ultraviolet lamp with a diameter of φ4.5mm. It efficiently emits germicidal wavelengths around 254nm and is used for sterilization and deodorization. It has a low output but is characterized by a long lifespan. There are ozone-generating types (185nm) and ozone-free types available. Its ultra-compact size makes it effective for applications where space is limited or when arranging multiple units for surface irradiation.
Inquire About This Product
basic information
Model Terminal Type UV Intensity Ozone Generation μW/cm2/10cm UVCCU-M40P-OZ Pin φ0.5 50 0.8 UVCCU-M40L-OZ Lead Wire 50 0.8 UVCCU-M40P Pin φ0.5 50 Zero UVCCU-M40L Lead Wire 50 Zero UVCCU-M55P-OZ Pin φ0.5 70 1 UVCCU-M55L-OZ Lead Wire 70 1 UVCCU-M55P Pin φ0.5 70 Zero UVCCU-M55L Lead Wire 70 Zero UVCCU-M70P-OZ Pin φ0.5 100 1.2 UVCCU-M70L-OZ Lead Wire 100 1.2 UVCCU-M70P Pin φ0.5 100 Zero UVCCU-M70L Lead Wire 100 Zero
Price range
Delivery Time
Applications/Examples of results
Irradiation of ultraviolet curing resin Tire crack testing Photocatalyst testing UV-cut glass transmittance testing Accelerated weather resistance test of color steel sheets Comparative test by partial sterilization of culture medium Weather resistance test of resin sheets Weather resistance test of coatings Drying of UV printing Reading of transparent UV ink Ultraviolet weeding effect Ultraviolet surface modification of resin substrates Ultraviolet (UV) cleaning of glass lenses Synthesis of vitamin D by ultraviolet irradiation Ultraviolet fluorescence method for sulfur dioxide Light source for total protein quantification using spectrophotometry Quantification of uranium ore using ultraviolet fluorescence method Light source for thin-layer chromatography
