Inserts for groove processing that contribute to reducing fear and collapse!
In the printing machinery industry, precise dimensional accuracy of parts is required, and stability during processing is crucial. Particularly in inner diameter machining, chip clogging and tool deflection can lead to decreased machining accuracy and the occurrence of defective products. To address these challenges and achieve stable, high-precision machining, HORN's inner diameter grooving tool "Mini" contributes significantly. 【Application Scenarios】 - Parts requiring precise grooving machining - Machining where chip disposal is a challenge - Operations requiring stable machining accuracy 【Benefits of Implementation】 - Reduction in frequent chip clogging - Realization of deep groove machining through rigidity - Improvement and stabilization of machining accuracy
Inquire About This Product
Related Videos
basic information

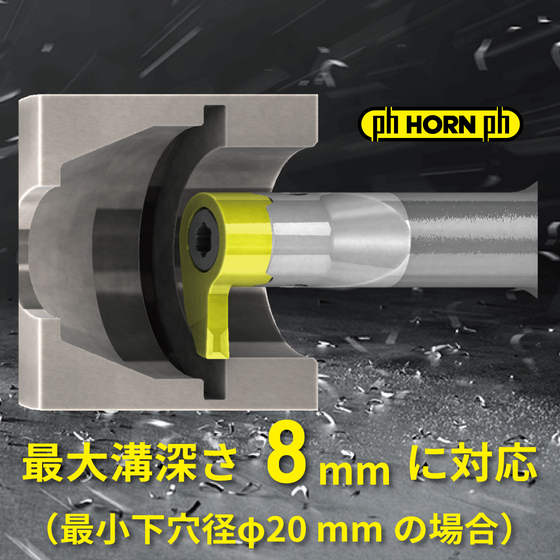

【Features】 ■ High rigidity and stable processing enabled by a unique six-sided clamping mechanism ■ Internal lubrication system that reliably supplies coolant to the cutting edge ■ Secure clamping guaranteed with the tightening of a single screw ■ One holder accommodates various machining and groove widths within the same system ■ Compatible processes: grooving, boring, threading, end face grooving, chamfering ・ Minimum pilot hole diameter: φ 6.0 mm to φ 18.0 mm ・ Insert width: 0.7 mm to 3.0 mm ・ Maximum groove depth: 0.8 mm to 8.0 mm 【Our Strengths】 Since our establishment in 1910, we have been a specialized trading company supporting the manufacturing industry. With partnerships with 500 domestic companies and 20 overseas companies primarily in Europe, we are committed to providing progressive and high-quality services to our customers. In addition to the sale of cutting tools and machine tools, we also develop and sell our original brand "i-TOOL" and import and sell overseas products, pursuing "value creation" that contributes to our customers' profitability.
Price range
Delivery Time
Applications/Examples of results
Example of replacing a competitor's tool with HORN Mini D Breaker (Our Case) Material being machined: SUM23 Cutting speed: Approximately 1.6 times faster 60m/min → 100m/min Feed rate: Approximately 1.5 times faster 0.02mm/rev → 0.03mm/rev Tool life: Over 10 times longer 150 pieces → 1500 pieces Processing time: Approximately 46% shorter About 28 seconds → About 15 seconds
