Reduce chip clogging and improve processing effort and tool life.

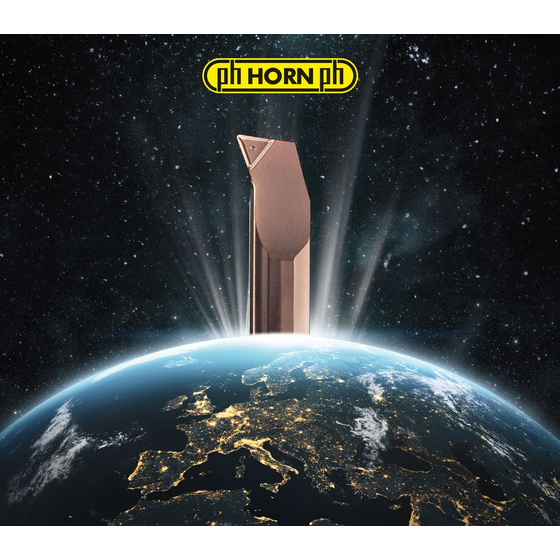

In the mold industry, especially in the processing of core and cavity, precise dimensional accuracy and good surface roughness are required. Chip clogging and elongation can lead to increased processing time, adverse effects on the work surface and tools, and even processing stoppages, resulting in decreased production efficiency. To address these challenges, we have newly launched the HORN U Breaker Super Mini tool for boring operations. 【Application Scenarios】 - Small diameter boring operations - Processing of steel and stainless materials - Finishing operations for core and cavity components 【Benefits of Implementation】 - Stabilization of processing due to the elimination of chip clogging - Reduction of processing time - Improvement of tool life - Mitigation of adverse effects on the work surface
Inquire About This Product
Related Videos
basic information
【Features】 ■ Compatible with pilot hole diameters of φ 4.0, 5.0, and 6.0 mm (New products compatible with φ 4.0 and φ 5.0 mm will be launched in December 2024) ■ Resolves chip clogging even with steel and stainless steel ■ Usable with existing tool holders ■ Achieves low-cost mass production compared to laser and grinding products through breaker formation via sintering 【Our Strengths】 Founded in 1910, we have been supporting manufacturing sites as a specialized trading company for machine tools for many years. With partnerships with 500 domestic suppliers and 20 overseas suppliers primarily in Europe, our mission is to provide customers with progressive and high-quality services. In addition to selling cutting tools and machine tools, we also develop and sell our original brand "i-TOOL" and import and sell overseas products, pursuing "value creation" that contributes to improving our customers' profitability.
Price range
Delivery Time
Applications/Examples of results
■ S45C Vc：100m/min ap：0.2mm f：0.03mm/rev ■ SUS304 Vc：80m/min ap：0.2mm f：0.03mm/rev
Line up（8）
| Model number | overview |
|---|---|
| RS105.1833.2.4.U20 IG35/TH35 | 【Bottom hole diameter φ 4.0 mm ～】 Insert total length: 30mm |
| RS105.1833.3.4.U20 IG35/TH35 | 【Bottom hole diameter φ 4.0 mm ～】 Insert total length: 35mm |
| RS105.1833.2.5.U20 IG35/TH35 | 【Drill hole diameter φ 5.0 mm ～】 Insert total length: 30mm |
| RS105.1833.3.5.U20 IG35/TH35 | 【Bottom hole diameter φ 5.0 mm ～】 Insert total length: 35mm |
| RS105.1833.4.5.U20 IG35/TH35 | 【Drill hole diameter φ 5.0 mm ～】 Insert total length: 40mm |
| RS105.1833.2.6.U20 IG35/TH35 | 【Bottom hole diameter φ 6.0 mm ～】 Insert total length: 30 mm |
| RS105.1833.3.6.U20 IG35/TH35 | 【Bottom hole diameter φ 6.0 mm ～】 Insert total length: 35 mm |
| RS105.1833.4.6.U20 IG35/TH35 | 【Bottom hole diameter φ 6.0 mm ～】 Insert total length: 40 mm |
catalog（6）
Download All Catalogs
Company information
We are a specialized trading company for machine tools that started operations in 1910 in Kyoto as Izushi Shoten, dealing in cast iron materials, conductive tools, and adjustment belts. Since our founding, we have consistently supported the manufacturing field as a trading company. The manufacturing landscape is evolving daily, with new technologies being introduced one after another. It is our mission and joy to be entrusted with the work that contributes to the development of such manufacturing. Currently, we are active under partnerships with 500 domestic companies and 20 overseas companies, primarily in Europe, with excellent supplier manufacturers, and our mission is to continuously provide our customers with progressive and high-quality services. We aim to contribute to our customers' profits and, without hesitation, work hard for the development of society by delivering unconventional services, in other words, "creating value." Please look forward to it.
