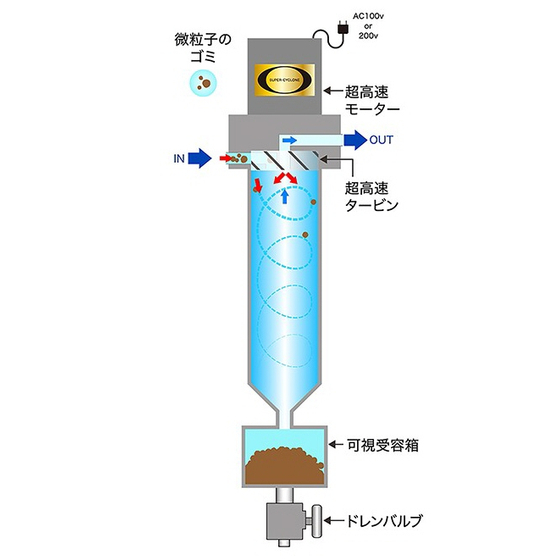

Centrifugal separation filtration device equipped with a high-speed motor turbine for cyclones.
■Zero industrial waste ■Zero maintenance ■Zero running costs Features 1. Compared to conventional cyclone devices, it can capture contaminants in the 1-10 micron range, which are one rank lower. 2. Waste reduction: There is no generation of industrial waste as elements such as cartridge filters and bag filters are unnecessary. 3. Durability and long lifespan: Maintenance-free due to minimal replacement of wear parts. 4. The wastewater from the super cyclone falls and accumulates in the drain tank at the bottom, but by slightly opening the valve, it can be discharged at high purity due to the internal pressure, and this operation can be performed without stopping the machine. Applications It is ideal for filtering coolant and grinding fluids in machine tools. By efficiently separating chips and sludge from liquids, it contributes to maintaining machining accuracy, extending the life of tools and grinding wheels, and reducing product defects. Additionally, it can be applied to impurity removal in the semiconductor industry and for sorting in pharmaceuticals and food products.
Inquire About This Product
basic information
【Specifications】 Size: 100φ×750 Weight: Approximately 15kg Voltage: AC100V to AC200V 3P IN side: 15A OUT side: 15A
Price information
Please contact us.
Price range
P3
Delivery Time
P4
※It will be shortened to about 30 days to around the next 20 days.
Applications/Examples of results
Maintenance-Free Due to its simple and straightforward structure, there is no occurrence of clogging, and inspection work is easy. Environmental Measures The "Ultra High-Speed Super Cyclone" does not produce industrial waste, contributing to corporate environmental measures, compliance with ISO 14001, and reduction of industrial waste disposal costs. Limitations of Cyclone Devices By increasing the rotational speed of the turbine blades, it is possible to achieve centrifugal forces several times to tens of times greater compared to conventional cyclones. Effect of Filterless Design The filtration accuracy of the Ultra High-Speed Super Cyclone is typically 95%, capable of capturing a wide range of particles from 1 micron to 1000 microns. Cost Benefits The Ultra High-Speed Super Cyclone can remove particles down to 1 micron, allowing it to be effective in areas that were previously difficult to address (for example, centrifuges). Examples of Use - Separation of raw materials in pharmaceuticals, chemicals, food, and beverages. - Chip recovery in the automotive, machine tool, and processing industries. - Removal of impurities in the semiconductor industry. - Removal of foreign substances in cleaning water.
Detailed information
-
I received the Invention Encouragement Award at the 1842nd Japan Invention Promotion Association event, hosted by the Nikkan Kogyo Shimbun.
Company information
At Japan Separator Co., Ltd., we assist in fully automating the production of coolant (cutting fluid) and its replenishment into tanks. Handmade and ejector-based fluid production is outdated! We manufacture and sell filtration devices capable of recovering fine particles from glass polishing, carbide polishing, quartz, and more. Founded in December 1993, we mainly handle oil recovery devices, backwash-type ultra-precision filtration devices, and automatic dilution supply devices for coolant. On March 18, 2021, we received the Invention Encouragement Award from the Japan Invention Promotion Association and the Nikkan Kogyo Shimbun. ♪ We will lend this device for free for one week. Please take this opportunity to thoroughly check its performance at your company. For more details, please apply through the inquiry section.
