Wireless repeater (communication distance extender)

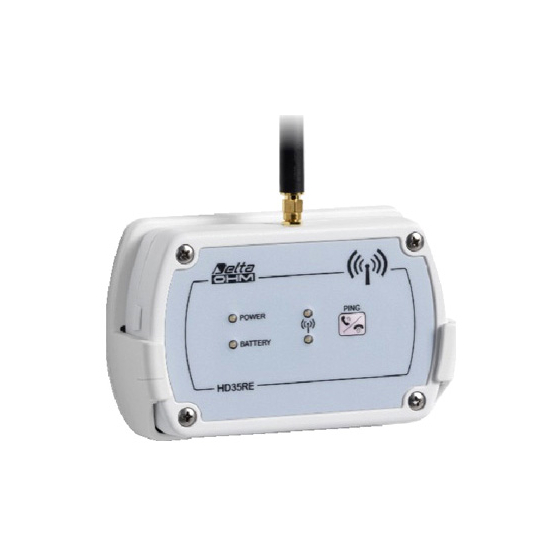

HD35RE: 920MHz Wireless Data Logging System Repeater (Wireless Relay) by Senseka
920MHz band wireless communication repeater! Expands the communication area between the master unit and the logger (slave unit), and supports cascading connections of multiple units!
The HD35RE is a repeater for the Senseca wireless data logging system "HD35 series." - It operates as a relay between the master unit HD35AP series and remote data loggers, extending the communication area. - It supports communication in indoor environments separated by walls or concrete, as well as outdoor environments where radio signals are difficult to reach. - Multiple repeaters can be cascaded to build a wider wireless network. - It supports 920MHz band wireless communication, relaying measurement data from the data logger to the master unit. - Power supply options include an external DC6V power source and an internal backup battery. - Configuration can be easily done with the HD35AP-S software, and it supports wall mounting and flange fixing. *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
Wireless frequency: 915.9 to 929.7 MHz Transmission distance: 300 m to a data logger with internal antenna in open space, 500 m to a repeater or data logger with external antenna Power supply: Built-in 3.7V lithium-ion rechargeable battery, capacity 2250 mA/h, DC 6V output AC adapter, direct power supply from PC USB port Power consumption: Approximately 30 mA Battery life: Approximately 3 days Operating conditions: -10 to +60°C / 0 to 85% RH, no condensation Dimensions: 135 × 86 × 33 mm (excluding antenna) Weight: Approximately 200 g Housing material: Plastic *For more details, please download the PDF or feel free to contact us.*
Price range
Delivery Time
Applications/Examples of results
● Food service (frozen containers, refrigeration and low-temperature storage, food processing and transportation) ● Health-related (storage of pharmaceuticals, vaccines, and blood, incubators, monitoring of operating rooms) ● Greenhouses and other agricultural applications ● Environmental analysis (air quality, meteorology, and hydrology) ● Monitoring of solar panels and power generation ● Monitoring of museums and archives ● Transportation of fragile products and corrosion (monitoring of shocks through acceleration measurement) ● Air conditioning industry ● Clean rooms ● Research and laboratories ● Processes in the industrial sector ● Buildings, offices, schools *For more details, please download the PDF or feel free to contact us.*
