1, 2, or 3 temperature input wireless data logger [indoor]

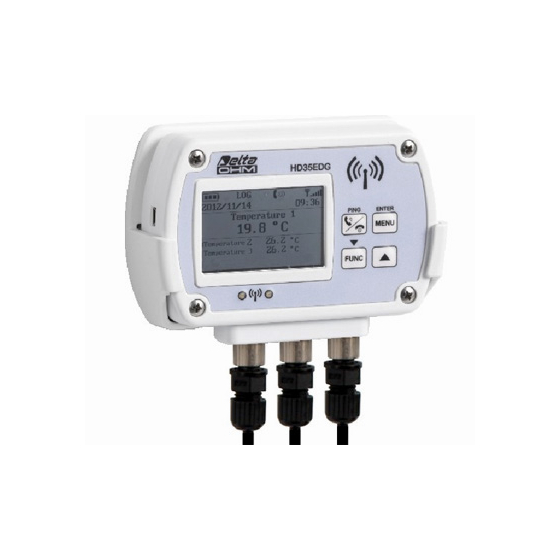

HD35EDN/...TC: 1ch/2ch/3ch temperature input wireless data logger by Senseka
Connect 1 to 3 NTC10KΩ temperature probes! Automatically transmit measurement data wirelessly to the main unit!
The HD35EDN/...TC is a wireless data logger for temperature inputs from the "HD35 series" manufactured by Senseca. ■ Can connect NTC 10KΩ temperature probes in 1ch/2ch/3ch configurations ■ Equipped with M12 connector inputs, allowing selection of models based on the number of measurement points ■ Saves measurement data in internal memory and transmits it to the parent unit at regular intervals or on demand ■ Records approximately 42,000 to 68,000 data points depending on the number of inputs ■ Supports audible alarms via a built-in buzzer ■ Configurable using software HD35AP-S or the front keyboard of display models ■ Powered by a built-in battery, can be fixed in place with wall-mount support or optional flange ■ Cable-connected NTC sensor separate-type temperature probes are sold separately *For more details, please download the PDF or feel free to contact us.*
Inquire About This Product
basic information
【Temperature】 Sensor: NTC 10KΩ (at 25℃) Measurement Range: -40 to +105℃ Resolution: 0.1℃ Accuracy: ±0.3℃ (0 to 70℃), ±0.4℃ (other than above) Stability: 0.1℃/year 【Main Unit】 Wireless Frequency: 915.9 to 929.7MHz Transmission Distance: 300m in line of sight Logging Interval: 1, 2, 5, 10, 15, 30 seconds / 1, 2, 5, 10, 15, 30, 60 minutes Power Supply: Built-in 3.6V thionyl chloride lithium battery (Li-SOCl2), non-rechargeable, battery size φ16.85×50.5mm, 2-pin Molex 5264 connector Battery Life: Approximately 3.5 years (measurement and communication interval of 1 minute), approximately 5 years (measurement and communication interval of 10 minutes) Operating Conditions: -20 to +70℃ / 0 to 85%RH, no condensation Dimensions: 135×102×33mm (excluding probe) Weight: Approximately 200g Housing Material: Plastic Protection Rating: IP50 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
● Food services (frozen containers, refrigeration and low-temperature storage, food processing and transportation) ● Health-related (storage of pharmaceuticals, vaccines, and blood, incubators, monitoring of operating rooms) ● Greenhouses and other agricultural applications ● Environmental analysis (air quality, meteorology, and hydrology) ● Monitoring of solar panels and power generation ● Monitoring of museums and archives ● Transportation of fragile products (monitoring of shocks through acceleration measurement) ● Air conditioning industry ● Clean rooms ● Research and laboratories ● Processes in the industrial sector ● Buildings, offices, schools *For more details, please download the PDF or feel free to contact us.*
