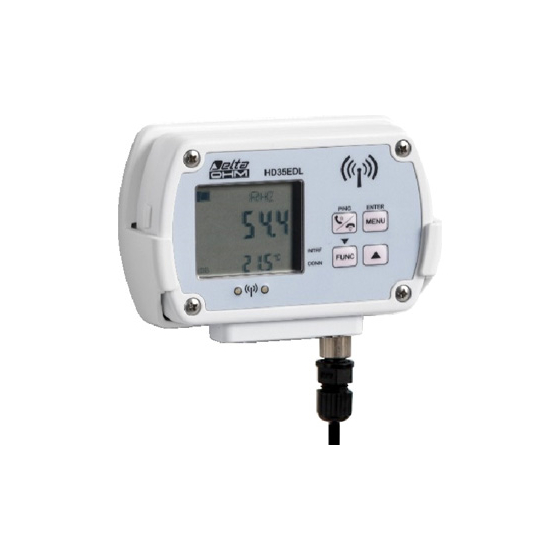

Wireless Data Logger for Temperature and Humidity [Indoor]
HD35ED1NTC/HD35EDL1NTC: Wireless data logger for temperature and humidity [indoor] by Senseka.
Measure temperature and relative humidity with a cable-connected temperature and humidity composite probe! Wirelessly transmit recorded data to the main unit!
The HD35ED1NTC/HD35EDL1NTC is a wireless data logger for temperature and humidity from the Senseca wireless data logging system "HD35 series." ■ Can connect a cable-connected separate temperature and relative humidity composite probe ■ Equipped with one input with M12 connector, suitable for indoor temperature and humidity monitoring ■ Stores 24,000 data points in internal memory ■ Wirelessly transmits recorded data to the master unit at regular intervals or on demand ■ Capable of calculating dew point temperature, wet bulb temperature, absolute humidity, mixing ratio, and water vapor partial pressure ■ Supports audible alarms via built-in buzzer ■ Configurable using software HD35AP-S or the front keyboard of display models ■ Powered by built-in battery, can be mounted on a wall or fixed with an optional flange ■ Cable-connected separate temperature and relative humidity composite probe sold separately *For more details, please download the PDF or feel free to contact us.*
Inquire About This Product
basic information
【Relative Humidity】 Measurement Range: 0–100% RH Accuracy: - ±1.8% RH (0–85% RH) at 15–35°C, ±2.5% RH (85–100% RH) - ±(2+1.5% rdg.)% outside the above temperature range Sensor Operating Temperature: -20 to +80°C Response Time: T90 < 20 seconds (at air flow rate of 2 m/s, without filter) 【Temperature】 Measurement Range: -40 to +105°C Accuracy: ±0.3°C (0–70°C), ±0.4°C (other than above) 【Main Unit】 Wireless Frequency: 915.9–929.7 MHz Transmission Distance: 300 m line of sight Logging Interval: 1 second and up Power Supply: Built-in 3.6V thionyl chloride lithium battery (Li-SOCl2), non-rechargeable, 2-pin Molex 5264 connector Battery Life: Approximately 3.5 years (measurement and communication interval of 1 minute), approximately 5 years (same at 10 minutes) Operating Conditions: -20 to +70°C / 0 to 85% RH, no condensation Dimensions: 135 × 102 × 33 mm (excluding probe) Weight: Approximately 200 g Housing Material: Plastic Protection Rating: IP50 *For more details, please download the PDF or feel free to contact us.*
Price range
Delivery Time
Applications/Examples of results
● Food services (frozen containers, refrigeration and low-temperature storage, food processing and transportation) ● Health-related (storage of pharmaceuticals, vaccines, and blood, incubators, monitoring of operating rooms) ● Greenhouses and other agricultural applications ● Environmental analysis (air quality, meteorology, and hydrology) ● Monitoring of solar panels and power generation ● Monitoring of museums and archives ● Transportation of fragile products and corrosion (monitoring of shocks through acceleration measurement) ● Air conditioning industry ● Clean rooms ● Research and laboratories ● Processes in industrial sectors ● Buildings, offices, schools *For more details, please download the PDF or feel free to contact us.*
catalog（1）
Download All Catalogs![Wireless Measurement Wireless Data Logging System [HD35 series]](https://image.mono.ipros.com/public/catalog/image/62000/IPROS7625815580998914032.jpeg?w=120&h=170)
