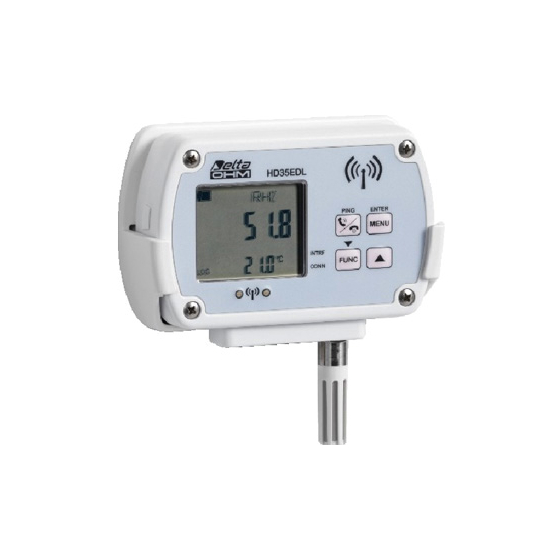

Temperature and Humidity Wireless Data Logger [Indoor] (Integrated Temperature and Humidity Downward Probe)
HD35ED1NTV/HD35EDL1NTV: Wireless data logger for temperature and humidity [indoor] by Senseka.
Measure temperature and humidity with an integrated lower probe! Wirelessly transmit recorded data to the main unit!
The HD35ED1NTV/HD35EDL1NTV is a wireless data logger for temperature and humidity from the Senseca "HD35 Series" wireless data logging system. ■ Integrated temperature and humidity probe with NTC 10KΩ temperature sensor and high-precision relative humidity sensor ■ Measures indoor temperature and relative humidity, storing 24,000 data points in internal memory ■ Wirelessly transmits recorded data to the master unit at regular intervals or on demand ■ Capable of calculating dew point temperature, wet bulb temperature, absolute humidity, mixing ratio, and water vapor pressure ■ Supports audible alarms via built-in buzzer ■ Configurable using software HD35AP-S or the front keyboard of display models ■ Powered by a built-in battery, can be mounted on a wall or fixed with an optional flange *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Relative Humidity】 Sensor: Capacitive type Measurement range: 0–100% RH Accuracy: - ±1.8% RH (0–85% RH) at 15–35℃, ±2.5% RH (85–100% RH) - Outside the above range: ±(2+1.5% rdg.)% Sensor operating temperature: -20 to +80℃ Response time: T90 < 20 seconds (airflow speed 2 m/s, no filter) 【Temperature】 Sensor: NTC 10KΩ (at 25℃) Measurement range: -40 to +105℃ Accuracy: ±0.3℃ (0–70℃), ±0.4℃ (other than the above) 【Main Unit】 Wireless frequency: 915.9–929.7 MHz Transmission distance: 300 m line of sight Logging interval: 1 second and up Power supply: Built-in 3.6V thionyl lithium battery, non-rechargeable, 2-pin Molex 5264 connector Battery life: Approximately 3.5 years (measurement and communication interval of 1 minute), approximately 5 years (same at 10 minutes) Operating conditions: -20 to +70℃ / 0 to 85% RH, no condensation Dimensions: 135 × 144 × 33 mm Weight: Approximately 200 g Housing material: Plastic Protection rating: IP50 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
● Food services (frozen containers, refrigeration and low-temperature storage, food processing and transportation) ● Health-related (storage of pharmaceuticals, vaccines, and blood, incubators, monitoring of operating rooms) ● Greenhouses and other agricultural applications ● Environmental analysis (air quality, meteorology, and hydrology) ● Monitoring of solar panels and power generation ● Monitoring of museums and archives ● Transportation of fragile products (monitoring of shocks through acceleration measurement) ● Air conditioning industry ● Clean rooms ● Research and laboratories ● Processes in the industrial sector ● Buildings, offices, schools *For more details, please download the PDF or feel free to contact us.*
