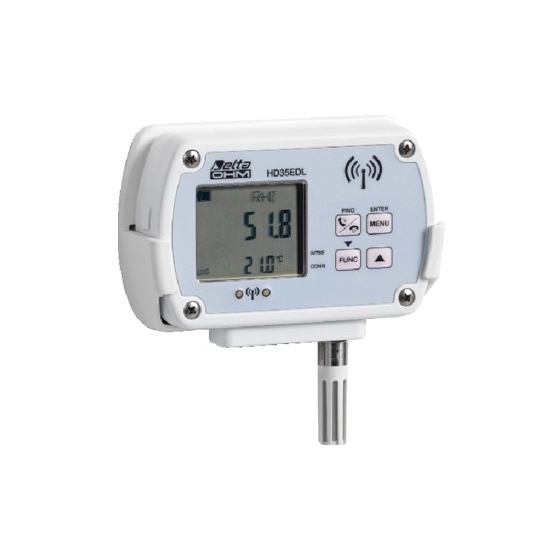

Temperature and Humidity Wireless Data Logger [Indoor] (Integrated Temperature and Humidity Downward Probe)
HD35ED1NTVI/HD35EDL1NTVI/HD35EDG1NTVI: Wireless data logger for temperature and humidity [indoor] by Senseka.
Measure temperature and relative humidity with an integrated lower probe! Wirelessly transmit recorded data to the main unit!
The HD35ED1NTVI/HD35EDL1NTVI/HD35EDG1NTVI is a wireless data logger for temperature and humidity from the Senseca HD35 series. ■ Integrated downward probe with a relative humidity module that includes a temperature sensor to measure indoor temperature and relative humidity ■ Stores 4,000 data points in internal memory ■ Wirelessly transmits recorded data to the master unit at regular intervals or on demand ■ Capable of calculating dew point temperature, wet bulb temperature, absolute humidity, mixing ratio, and water vapor partial pressure ■ Option to choose models with custom LCD or graphic LCD ■ Supports audible alarms via built-in buzzer ■ Configurable using software HD35AP-S or the front keyboard ■ Powered by a built-in battery and can be mounted on a wall or fixed with an optional flange *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Relative Humidity】 Measurement Range: 0–100% RH Accuracy: ±2.5% RH (0–85% RH) / ±3.5% RH (85–100% RH) at T=23℃ Sensor Operating Temperature: -40 to +105℃ (maximum = [100-2*(T-80)], T=80–105℃) Response Time: T63 < 4 seconds (airflow speed 2 m/s, no filter) 【Temperature】 Measurement Range: -40 to +105℃ Accuracy: - ±0.2℃ (0–60℃) - ±(0.2-0.05*T)℃ (T=-40 to 0℃) - ±[0.2+0.032*(T-60)]℃ (T=60 to 105℃) 【Main Unit】 Wireless Frequency: 915.9–929.7 MHz Transmission Distance: 300 m in line of sight Logging Interval: 1 second and above Power Supply: Built-in 3.6V thionyl chloride lithium battery, non-rechargeable, 2-pin Molex 5264 connector Battery Life: Approximately 3.5 to 5 years Operating Conditions: -20 to +70℃ / 0 to 85% RH, no condensation Dimensions: 135 × 144 × 33 mm Weight: Approximately 200 g Housing Material: Plastic Protection Rating: IP50 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
● Food services (frozen containers, refrigeration and low-temperature storage, food processing and transportation) ● Health-related (storage of pharmaceuticals, vaccines, and blood, incubators, monitoring of operating rooms) ● Greenhouses and other agricultural applications ● Environmental analysis (air quality, meteorology, and hydrology) ● Monitoring of solar panels and power generation ● Monitoring of museums and archives ● Transportation of fragile products (monitoring of shocks through acceleration measurement) ● Air conditioning industry ● Clean rooms ● Research and laboratories ● Processes in the industrial sector ● Buildings, offices, schools *For more details, please download the PDF or feel free to contact us.*
