Temperature, Humidity, and Atmospheric Pressure Wireless Data Logger [Indoor]

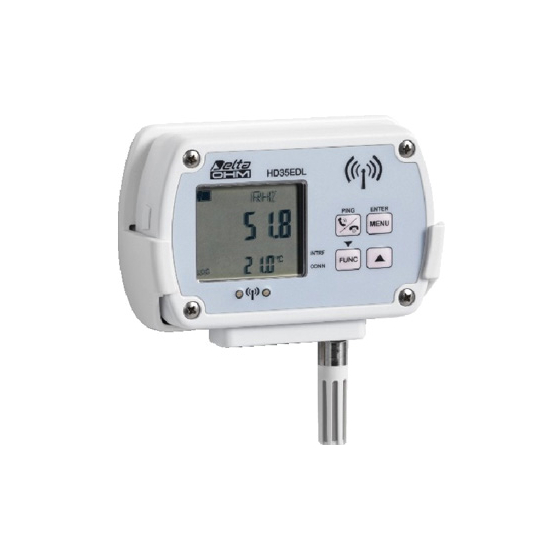

HD35ED14bNTV/HD35EDL14bNTV: Temperature and Humidity / Atmospheric Pressure Wireless Data Logger [Indoor] by Senseka
Adopts 920MHz band wireless! Measures temperature, humidity, and atmospheric pressure, and automatically transmits to the main unit!
The HD35ED14bNTV/HD35EDL14bNTV is a wireless data logger for temperature, humidity, and atmospheric pressure from the Senseca wireless data logging system "HD35 series." ■ Integrated temperature and humidity downward probe for measuring indoor temperature and relative humidity ■ Built-in atmospheric pressure sensor for monitoring temperature, humidity, and atmospheric pressure with a single unit ■ Stores 22,000 data points in internal memory ■ Wirelessly transmits recorded data to the master unit at regular intervals or on demand ■ Capable of calculating dew point temperature, wet bulb temperature, absolute humidity, mixing ratio, and water vapor pressure ■ Supports audible alarms via built-in buzzer ■ Configurable using software HD35AP-S or the front keyboard of display models ■ Powered by built-in batteries, can be mounted on a wall or fixed in place with an optional flange *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Relative Humidity】 Measurement Range: 0–100% RH Accuracy: - ±1.8% RH (0–85% RH) at 15–35°C, ±2.5% RH (85–100% RH) - ±(2+1.5% rdg.)% outside the above temperature range Sensor Operating Temperature: -20 to +80°C 【Temperature】 Measurement Range: -40 to +105°C Accuracy: ±0.3°C (0–70°C), ±0.4°C (other than above) 【Atmospheric Pressure】 Measurement Range: 300–1100 hPa Accuracy: ±0.5 hPa (800–1100 hPa, 25°C), ±1 hPa (300–1100 hPa, 0–50°C) 【Main Unit】 Wireless Frequency: 915.9–929.7 MHz Transmission Distance: 300 m line of sight Logging Interval: 1 second or more Power Supply: Built-in 3.6V thionyl lithium battery, non-rechargeable, 2-pin Molex 5264 connector Battery Life: Approximately 3.5–5 years Operating Conditions: -20 to +70°C / 0 to 85% RH, no condensation Dimensions: 135 × 144 × 33 mm Weight: Approximately 200 g Material: Plastic Protection Rating: IP50 *For more details, please download the PDF or feel free to contact us.*
Price range
Delivery Time
Applications/Examples of results
● Food services (frozen containers, refrigeration and low-temperature storage, food processing and transportation) ● Health-related (storage of pharmaceuticals, vaccines, and blood, incubators, monitoring of operating rooms) ● Greenhouses and other agricultural applications ● Environmental analysis (air quality, meteorology, and hydrology) ● Monitoring of solar panels and power generation ● Monitoring of museums and archives ● Transportation of fragile products (monitoring of shocks through acceleration measurement) ● Air conditioning industry ● Clean rooms ● Research and laboratories ● Processes in the industrial sector ● Buildings, offices, schools *For more details, please download the PDF or feel free to contact us.*
