Temperature, humidity, and atmospheric pressure wireless data logger [indoor]

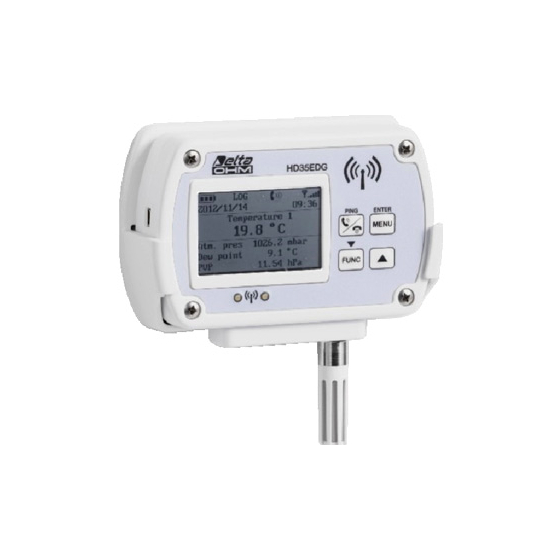

HD35ED14bNTVI/HD35EDG14bNTVI: Temperature and Humidity, Atmospheric Pressure Wireless Data Logger [Indoor] by Senseka
Adopts 920MHz band wireless! Measures temperature, humidity, and atmospheric pressure, and automatically transmits to the main unit!
The HD35ED14bNTVI/HD35EDG14bNTVI is a wireless data logger for temperature, humidity, and atmospheric pressure from the Senseca wireless data logging system "HD35 series." ■ Integrated temperature and humidity downward probe for measuring indoor temperature and relative humidity ■ Built-in atmospheric pressure sensor for monitoring temperature, humidity, and atmospheric pressure with one device ■ Stores 22,000 data points in internal memory ■ Wirelessly transmits recorded data to the master unit at regular intervals or on demand ■ Capable of calculating dew point temperature, wet bulb temperature, absolute humidity, mixing ratio, and water vapor partial pressure ■ Option to select a model with a graphic LCD ■ Supports audible alarms via a built-in buzzer ■ Configurable using software HD35AP-S or the front keyboard ■ Powered by a built-in battery, can be mounted on a wall or secured with an optional flange *For more details, please download the PDF or feel free to contact us.*
Inquire About This Product
basic information
【Relative Humidity】 Measurement Range: 0–100% RH Accuracy: ±2.5% RH (0–85% RH) at T=23℃, ±3.5% RH (85–100% RH) 【Temperature】 Measurement Range: -40 to +105℃ Accuracy: ±0.2℃ (0–60℃), ±(0.2-0.05*T)℃ (T=-40 to 0℃), ±[0.2+0.032*(T-60)]℃ (T=60 to 105℃) 【Atmospheric Pressure】 Measurement Range: 300–1100 hPa Accuracy: ±0.5 hPa (800–1100 hPa at 25℃), ±1 hPa (300–1100 hPa at 0–50℃) 【Main Unit】 Wireless Frequency: 915.9–929.7 MHz Transmission Distance: 300 m in line of sight Logging Interval: 1 second and up Power Supply: Built-in 3.6V thionyl chloride lithium battery, non-rechargeable, 2-pin Molex 5264 connector Battery Life: Approximately 3.5 to 5 years Operating Conditions: -20 to +70℃ / 0 to 85% RH, no condensation Dimensions: 135×144×33 mm Weight: Approximately 200 g Housing Material: Plastic Protection Rating: IP50 *For more details, please download the PDF or feel free to contact us.*
Price range
Delivery Time
Applications/Examples of results
● Food services (frozen containers, refrigeration and low-temperature storage, food processing and transportation) ● Health-related (storage of pharmaceuticals, vaccines, and blood, incubators, monitoring of operating rooms) ● Greenhouses and other agricultural applications ● Environmental analysis (air quality, meteorology, and hydrology) ● Monitoring of solar panels and power generation ● Monitoring of museums and archives ● Transportation of fragile products (monitoring of shocks through acceleration measurement) ● Air conditioning industry ● Clean rooms ● Research and laboratories ● Processes in industrial sectors ● Buildings, offices, schools *For more details, please download the PDF or feel free to contact us.*
catalog（1）
Download All Catalogs![Wireless Measurement Wireless Data Logging System [HD35 series]](https://image.mono.ipros.com/public/catalog/image/62000/IPROS17401591254928901707.jpeg?w=120&h=170)
