Wireless data logger for temperature, humidity, and differential pressure [indoor]
HD35ED1N4r...TV/HD35EDL1N4r...TV: Wireless data logger for temperature and humidity, and differential pressure [indoor] by Senseka.
Measure temperature, humidity, and differential pressure with one device! Wirelessly transmit recorded data to the main unit!

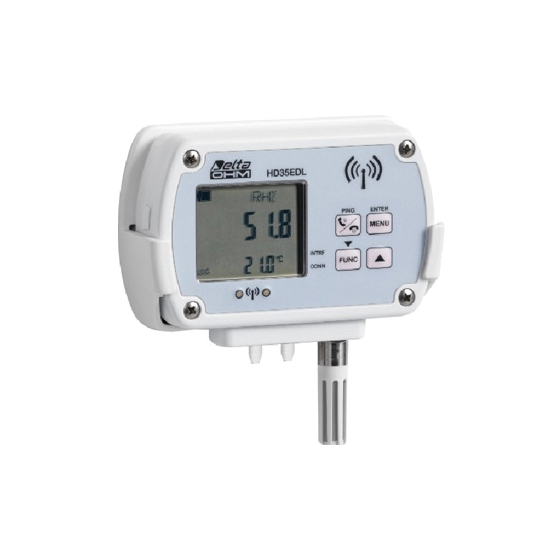

The HD35ED1N4r...TV/HD35EDL1N4r...TV is a wireless data logger for temperature, humidity, and differential pressure from Senseca's "HD35 Series" wireless data logging system. ■ Integrated temperature and humidity downward probe for measuring indoor temperature and relative humidity ■ Equipped with a pressure port for differential pressure input, allowing monitoring of temperature, humidity, and differential pressure with one device ■ Stores 22,000 data points in internal memory ■ Wirelessly transmits recorded data to the master unit at regular intervals or on demand ■ Capable of calculating dew point temperature, wet bulb temperature, absolute humidity, mixing ratio, and water vapor partial pressure ■ Supports audible alarms via a built-in buzzer ■ Configurable using software HD35AP-S or the front keyboard of display models ■ Powered by a built-in battery and can be fixed in place with wall mounting support or optional flange *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Relative Humidity】 Measurement Range: 0–100% RH Accuracy: - ±1.8% RH (0–85% RH) / ±2.5% RH (85–100% RH) at 15–35℃ - ±(2+1.5% rdg.)% at temperatures outside the above range 【Temperature】 Measurement Range: -40 to +105℃ Accuracy: ±0.3℃ (0–70℃), ±0.4℃ (other than above) 【Differential Pressure】 Measurement Range: ±100 Pa (r1z), ±2.5 hPa (r1), ±10 hPa (r2), ±100 hPa (r3), ±200 hPa (r4) Accuracy: ±(0.8% rdg + 0.5) Pa (0–50℃, r1z), ±1% FS (r1–r4) 【Main Unit】 Wireless Frequency: 915.9–929.7 MHz Transmission Distance: 300 m line of sight Power Supply: Built-in 3.6V thionyl lithium battery, non-rechargeable, 2-pin Molex 5264 connector Battery Life: Approximately 1.5 years (r1z), approximately 2 years (r1–r4) Operating Conditions: -20 to +70℃ / 0 to 85% RH, no condensation Dimensions: 135×94×33 mm (excluding probe) Protection Rating: IP50 *For more details, please download the PDF or feel free to contact us.*
Price range
Delivery Time
Applications/Examples of results
● Food services (frozen containers, refrigeration and low-temperature storage, food processing and transportation) ● Health-related (storage of pharmaceuticals, vaccines, and blood, incubators, monitoring of operating rooms) ● Greenhouses and other agricultural applications ● Environmental analysis (air quality, meteorology, and hydrology) ● Monitoring of solar panels and power generation ● Monitoring of museums and archives ● Transportation of fragile products (monitoring of shocks through acceleration measurement) ● Air conditioning industry ● Clean rooms ● Research and laboratories ● Processes in the industrial sector ● Buildings, offices, schools *For more details, please download the PDF or feel free to contact us.*
catalog（1）
Download All Catalogs![Wireless Measurement Wireless Data Logging System [HD35 series]](https://image.mono.ipros.com/public/catalog/image/62000/IPROS7024372803088202311.jpeg?w=120&h=170)
