Differential Pressure Wireless Data Logger [Indoor]

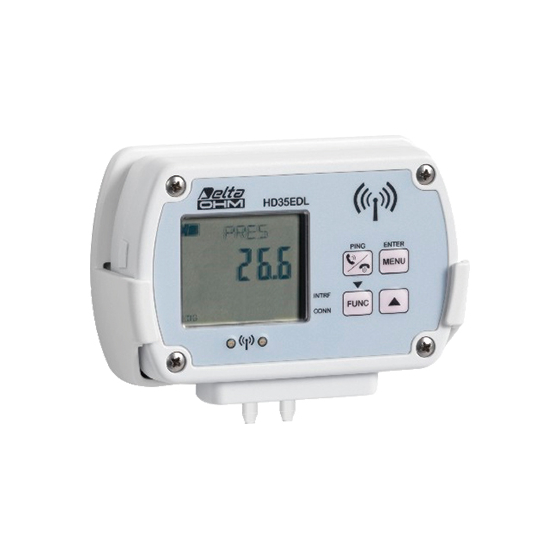

HD35ED4r…/HD35EDL4r…: Wireless data logger for differential pressure [indoor] by Senseka
Automatically records differential pressure and wirelessly transmits measurement data to the master unit! Ideal for indoor pressure management!
The HD35ED4r…/HD35EDL4r… is a wireless data logger for differential pressure from Senseca's "HD35 Series" wireless data logging system. ■ Supports indoor differential pressure measurement, with selectable measurement ranges based on application ■ Equipped with pressure ports, allowing for differential pressure monitoring via tube connections ■ Stores 68,000 measurement data points in internal memory ■ Wirelessly transmits recorded data to the master unit at regular intervals or on demand ■ Supports audible alarms via a built-in buzzer ■ Can be configured using the HD35AP-S software or the front keyboard of display models ■ Powered by a built-in battery, can be mounted on a wall or fixed in place with an optional flange *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Differential Pressure】 Sensor: Piezo-resistive (r1～r4), thermal mass flow sensor (r5) Measurement Range: ±2.5hPa (r1), ±10hPa (r2), ±100hPa (r3), ±2000Pa (r4), ±125Pa (clean room, r5) Resolution: 0.001hPa (r1), 0.005hPa (r2), 0.05hPa (r3), 1hPa (r4), 0.01Pa (r5) Accuracy: ±1%F.S. (r1～r4), ±3%rdg. / ±0.1Pa (at 0Pa) (r5) Connection Method: φ5mm tube 【Main Unit】 Wireless Frequency: 915.9～929.7MHz Transmission Distance: 300m in line of sight Logging Interval: 1 second and above Power Supply: Built-in 3.6V thionyl lithium battery, non-rechargeable, 2-pin Molex 5264 connector Battery Life: Approximately 3.5～5 years (r1～r4), approximately 1.5 years (r5) Operating Conditions: -20～+70℃/0～85%RH, no condensation Dimensions: 135×94×33mm (excluding probe) Weight: Approximately 200g Housing Material: Plastic Protection Rating: IP50 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
● Food service (frozen containers, refrigeration and low-temperature storage, food processing and transportation) ● Health-related (storage of pharmaceuticals, vaccines, and blood, incubators, monitoring of operating rooms) ● Greenhouses and other agricultural applications ● Environmental analysis (air quality, meteorology, and hydrology) ● Monitoring of solar panels and power generation ● Monitoring of museums and archives ● Transportation of fragile products (monitoring of shocks through acceleration measurement) ● Air conditioning industry ● Clean rooms ● Research and laboratories ● Processes in industrial sectors ● Buildings, offices, schools *For more details, please download the PDF or feel free to contact us.*
