Wireless data logger for temperature, humidity, and illuminance [indoor]

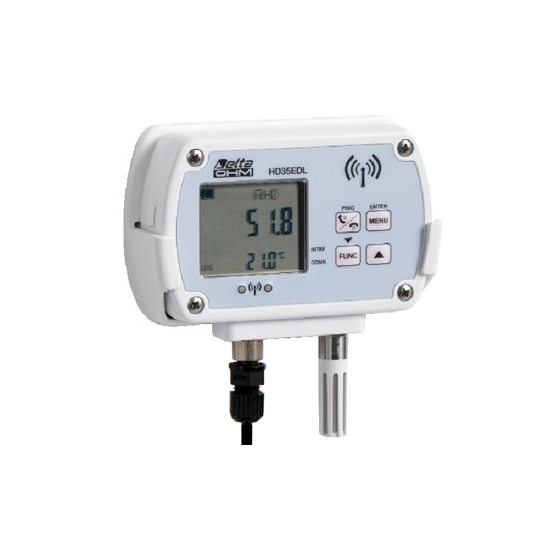

HD35ED1NI...TCV/HD35EDL1NI...TCV: Temperature and Humidity / Light Wireless Data Logger [Indoor] by Senseka
Measure temperature, humidity, and illuminance with one device! Wirelessly transmit recorded data to the main unit!
The HD35ED1NI...TCV/HD35EDL1NI...TCV is a wireless data logger for temperature, humidity, and illuminance from the Senseca wireless data logging system "HD35 Series." ■ Integrated temperature and humidity downward probe for measuring indoor temperature and relative humidity ■ Equipped with one M12 connector input for P35PHOT, compatible with illuminance probe connection ■ Stores 44,000 data points in internal memory ■ Wirelessly transmits recorded data to the master unit at regular intervals or on demand ■ Capable of calculating dew point temperature, wet bulb temperature, absolute humidity, mixing ratio, and water vapor partial pressure ■ Supports audible alarms via a built-in buzzer ■ Configurable using software HD35AP-S or the front keyboard of display models ■ Powered by a built-in battery, can be mounted on a wall or fixed with an optional flange ■ Separate illuminance probe with cable sold separately *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Relative Humidity】 Measurement Range: 0–100% RH Accuracy: - ±1.8% RH (0–85% RH) at 15–35℃, ±2.5% RH (85–100% RH) - ±(2+1.5% rdg.)% at other temperature ranges 【Temperature】 Measurement Range: -40 to +105℃ Accuracy: ±0.3℃ (0–70℃), ±0.4℃ (other ranges) 【Illuminance】 Measurement Range: l1: 0–20,000 Lux, l2: 0–200,000 Lux Spectral Range: Matches standard photopic sensitivity V(λ) Class: B Operating Temperature: 0–50℃ Technical Standard: CIE n.69 - UNI 11142 【Main Unit】 Wireless Frequency: 915.9–929.7 MHz Transmission Distance: 300 m line of sight Logging Interval: 1 second and above Power Supply: Built-in 3.6V thionyl lithium battery, non-rechargeable, 2-pin Molex 5264 connector Battery Life: Approximately 3.5 to 5 years Operating Conditions: -20 to +70℃ / 0 to 85% RH, no condensation Dimensions: 135×144×33 mm Housing Material: Plastic Protection Rating: IP50 *For more details, please download the PDF or feel free to contact us.*
Price range
Delivery Time
Applications/Examples of results
● Food services (frozen containers, refrigeration and low-temperature storage, food processing and transportation) ● Health-related (storage of pharmaceuticals, vaccines, and blood, incubators, monitoring of operating rooms) ● Greenhouses and other agricultural applications ● Environmental analysis (air quality, meteorology, and hydrology) ● Monitoring of solar panels and power generation ● Monitoring of museums and archives ● Transportation of fragile products (monitoring of shocks through acceleration measurement) ● Air conditioning industry ● Clean rooms ● Research and laboratories ● Processes in the industrial sector ● Buildings, offices, schools *For more details, please download the PDF or feel free to contact us.*
