Wireless data logger for temperature, humidity, and illuminance [indoor]

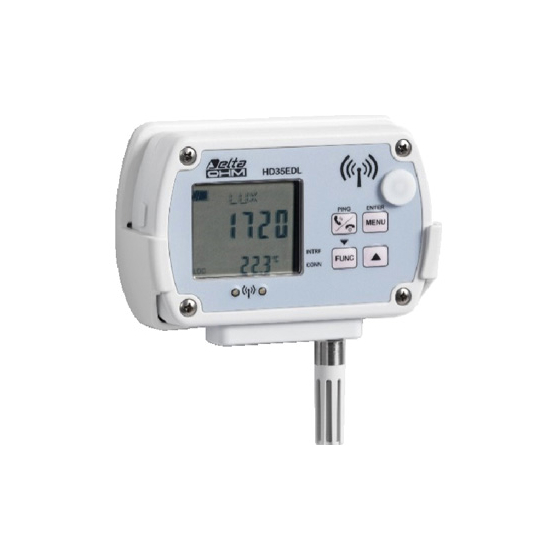

HD35ED1NITV/HD35EDL1NITV: Wireless Data Logger for Temperature, Humidity, and Illumination [Indoor] by Senseka
Measure temperature, humidity, and illuminance with one device! Wirelessly transmit recorded data to the main unit!
The HD35ED1NITV/HD35EDL1NITV is a wireless data logger for temperature, humidity, and illuminance from the Senseca HD35 series wireless data logging system. ■ Integrated temperature and humidity probe measures indoor temperature and relative humidity ■ Built-in illuminance sensor for illuminance monitoring ■ Stores 44,000 data points in internal memory ■ Wirelessly transmits recorded data to the master unit at set intervals or on demand ■ Capable of calculating dew point temperature, wet bulb temperature, absolute humidity, mixing ratio, and water vapor pressure ■ Supports audible alarms via built-in buzzer ■ Configurable using software HD35AP-S or the front keyboard of display models ■ Powered by built-in batteries, can be wall-mounted or fixed with an optional flange *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Relative Humidity】 Measurement Range: 0–100% RH Accuracy: - ±1.8% RH (0–85% RH) at 15–35°C, ±2.5% RH (85–100% RH) - ±(2+1.5% rdg.)% outside the above temperature range Sensor Operating Temperature: -20 to +80°C 【Temperature】 Measurement Range: -40 to +105°C Accuracy: ±0.3°C (0–70°C), ±0.4°C (other than the above) 【Illuminance】 Measurement Range: 0–20,000 Lux Spectral Range: Matches standard photopic sensitivity V(λ) Class: B Operating Temperature: 0–50°C Technical Standards: CIE n.69 - UNI 11142 【Main Unit】 Wireless Frequency: 915.9–929.7 MHz Transmission Distance: 300 m line of sight Logging Interval: 1 second and above Power Supply: Built-in 3.6V thionyl lithium battery, non-rechargeable, 2-pin Molex 5264 connector Battery Life: Approximately 3.5 to 5 years Operating Conditions: -20 to +70°C / 0 to 85% RH, no condensation Dimensions: 135 × 144 × 33 mm Housing Material: Plastic Protection Rating: IP50 *For more details, please download the PDF or feel free to contact us.*
Price range
Delivery Time
Applications/Examples of results
● Food services (frozen containers, refrigeration and low-temperature storage, food processing and transportation) ● Health-related (storage of pharmaceuticals, vaccines, and blood, incubators, monitoring of operating rooms) ● Greenhouses and other agricultural applications ● Environmental analysis (air quality, meteorology, and hydrology) ● Monitoring of solar panels and power generation ● Monitoring of museums and archives ● Transportation of fragile products (impact monitoring through acceleration measurement) ● Air conditioning industry ● Clean rooms ● Research and laboratories ● Processes in the industrial sector ● Buildings, offices, schools *For more details, please download the PDF or feel free to contact us.*
