Analog Pt TC 3-channel multi-input logger [indoor]

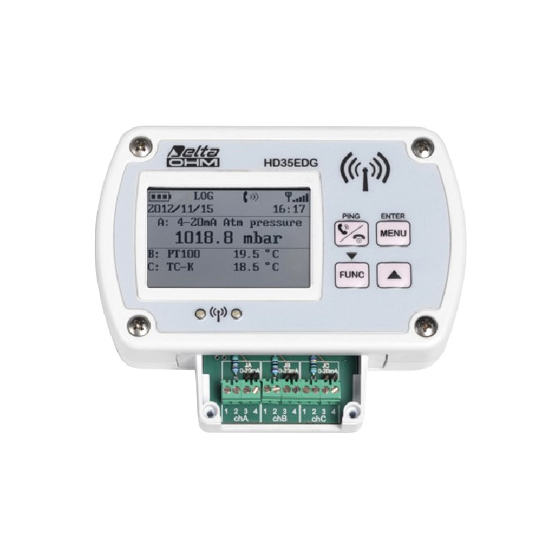

HD35EDH/HD35EDGH: 3-channel multi-input wireless data logger [indoor] by Senseka.
Supports analog temperature contact input! Wireless transmission of 3-channel measurement data to the master unit!
The HD35EDH/HD35EDGH is a 3-channel multi-input wireless data logger from Senseca's "HD35 Series" wireless data logging system. ■ Equipped with three input terminals, capable of recording multiple sensor signals with one unit ■ Supports analog inputs of DC 4-20mA, DC 0-1V, and DC 0-50mV ■ Compatible with Pt100/Pt1000, K, J, T, N, E thermocouples, and potentiometers ■ Input 3 can be configured as a pulse counting input for voltage-free contacts ■ Stores measurement data in internal memory, with a capacity of 36,000 to 68,000 data points ■ Wirelessly transmits recorded data to the master unit at regular intervals or on demand ■ The HD35EDGH features a graphic LCD *For more details, please download the PDF or feel free to contact us.*
Inquire About This Product
basic information
【Pt100/Pt1000】 Measurement range: -200 to +650℃ Accuracy: ±0.1℃ (excluding probe error) Sensor coefficient: α=0.00385℃-1 Connection: 2, 3, or 4 wires 【Thermocouple】 Type: K, J, T, N, E Measurement range: -200 to +1370℃ Accuracy: ±0.1 to 0.2℃ 【DC4 to 20mA Input】 Shunt resistance: Internal 50Ω Accuracy: ±2μA 【DC to 1V/0 to 50mV Input】 Input resistance: 100MΩ Accuracy: ±0.01% F.S. 【Voltage-free Contact】 Open/close frequency: Max. 50Hz Hold time: Min. 10ms 【Potentiometer】 Value: 10MΩ (typical value) Accuracy: ±0.01% F.S. 【Main Unit】 Wireless frequency: 915.9 to 929.7MHz Transmission distance: 300m Logging interval: 1 second or more Power supply: Built-in 3.6V thionyl chloride lithium battery Battery life: Approximately 2 years Operating conditions: -10 to +70℃/0 to 85% RH, no condensation Dimensions: 135×110×33mm Housing material: Plastic *For more details, please download the PDF or feel free to contact us.*
Price range
Delivery Time
Applications/Examples of results
● Food services (frozen containers, refrigeration and low-temperature storage, food processing and transportation) ● Health-related (storage of pharmaceuticals, vaccines, and blood, incubators, monitoring of operating rooms) ● Greenhouses and other agricultural applications ● Environmental analysis (air quality, meteorology, and hydrology) ● Monitoring of solar panels and power generation ● Monitoring of museums and archives ● Transportation of fragile products (monitoring of shocks through acceleration measurement) ● Air conditioning industry ● Clean rooms ● Research and laboratories ● Industrial process sectors ● Buildings, offices, schools *For more details, please download the PDF or feel free to contact us.*
catalog（1）
Download All Catalogs![Wireless Measurement Wireless Data Logging System [HD35 series]](https://image.mono.ipros.com/public/catalog/image/62000/IPROS4152893204083344704.jpeg?w=120&h=170)
