"Waterproof type" 1, 2 or 3 temperature input wireless data logger [outdoor]
HD35EDW7P/...TC/HD35EDLW7P/...TC: Waterproof 1-3 channel temperature input wireless data logger [Outdoor] by Senseka.
Waterproof housing specification! Connect 1 to 3 Pt100/Pt1000 probes and wirelessly transmit outdoor temperature!

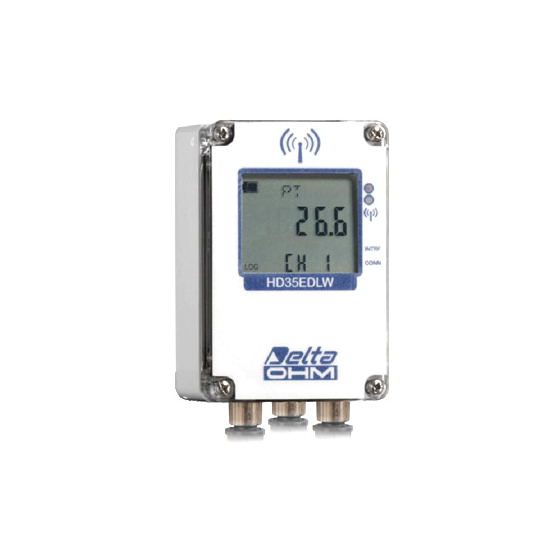

The HD35EDW7P/...TC/HD35EDLW7P/...TC is an outdoor waterproof temperature input wireless data logger from Senseca's "HD35 Series" wireless data logging system. ■ IP67 waterproof housing specification for outdoor temperature monitoring ■ Can connect Pt100/Pt1000 temperature probes with 1ch/2ch/3ch options ■ Equipped with M12 connector input, allowing selection of models based on the number of measurement points ■ Stores measurement data in internal memory ranging from 42,000 to 68,000 data points ■ Wirelessly transmits recorded data to the master unit at set intervals or on demand ■ Supports audible alarms via built-in buzzer ■ Configurable with HD35AP-S software ■ Powered by built-in battery, also supports mast mounting and outdoor installation options ■ Cable-connected Pt100/Pt1000 temperature probes sold separately *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Temperature】 Sensor: Pt100/Pt1000 1/3DIN, thin film type Measurement Range: -100 to +350℃ (limited by the probe's operating temperature) Resolution: 0.1℃ Accuracy: JIS C1604:2013 Stability: 0.1℃/year 【Main Unit】 Wireless Frequency: 915.9 to 929.7MHz Transmission Distance: 300m with internal antenna, 500m with external antenna in line of sight Logging Interval: 1, 2, 5, 10, 15, 30 seconds / 1, 2, 5, 10, 15, 30, 60 minutes Power Supply: Built-in 3.6V thionyl lithium battery, non-rechargeable, battery size AA, 2-pin Molex 5264 connector Battery Life: Approximately 2 years (without repeater, measurement interval of 10 seconds, logging interval of 30 seconds) Operating Conditions: -20 to +70℃ / 0 to 100% RH, no condensation Dimensions: 129×80×55mm (excluding probe and external antenna) Weight: Approximately 250g Housing Material: Polycarbonate Protection Rating: IP67 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
● Food service (frozen containers, refrigeration and low-temperature storage, food processing and transportation) ● Health-related (storage of pharmaceuticals, vaccines, and blood, incubators, monitoring of operating rooms) ● Greenhouses and other agricultural applications ● Environmental analysis (air quality, meteorology, and hydrology) ● Monitoring of solar panels and power generation ● Monitoring of museums and archives ● Transportation of fragile products (monitoring of shocks through acceleration measurement) ● Air conditioning industry ● Clean rooms ● Research and laboratories ● Processes in the industrial sector ● Buildings, offices, schools *For more details, please download the PDF or feel free to contact us.*
catalog（1）
Download All Catalogs![Wireless Measurement Wireless Data Logging System [HD35 series]](https://image.mono.ipros.com/public/catalog/image/62000/IPROS3469822282083735396.jpeg?w=120&h=170)
Company information
Sakaki Corporation provides products and services from leading European manufacturers such as "Sensirion (formerly Delta Ohm) (formerly Glaesinger)", "Senseair", "Z-LASER", and "LSI Lastem" as the official importer and distributor in Japan. Additionally, we develop, support, and undertake custom development and mass production of our own brand network IoT products, including routers and gateways that support camera video and solar power cloud services.
