"Waterproof type" 1, 2 or 3 temperature input wireless data logger [outdoor]
HD35EDWN/...TC/HD35EDLWN/...TC: Waterproof 1-3 channel temperature input wireless data logger [outdoor] by Senseka.
Waterproof housing specification! Connect 1 to 3 NTC 10KΩ probes to wirelessly transmit outdoor temperature!

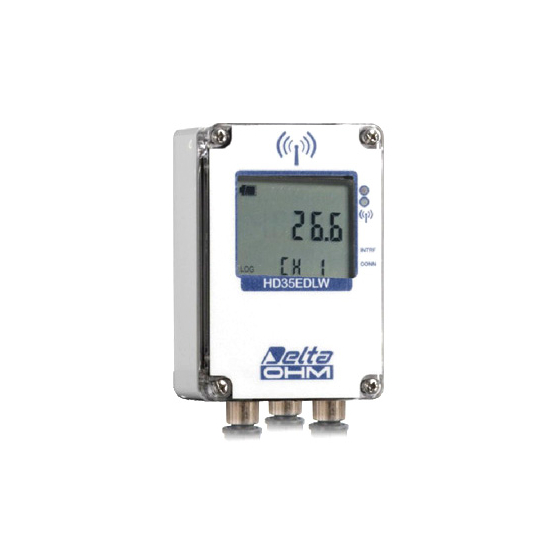

The HD35EDWN/...TC/HD35EDLWN/...TC is an outdoor waterproof temperature input wireless data logger from the Senseca "HD35 Series" wireless data logging system. ■ IP67 waterproof housing specification for outdoor temperature monitoring ■ NTC 10KΩ temperature probes can be connected in 1ch/2ch/3ch ■ Equipped with M12 connector input, allowing selection of models based on the number of measurement points ■ Stores 42,000 to 68,000 data points in internal memory ■ Wirelessly transmits recorded data to the master unit at regular intervals or on demand ■ Supports audible alarms via built-in buzzer ■ Configurable with HD35AP-S software ■ Powered by built-in battery, with options for mast mounting and outdoor installation ■ Cable-attached NTC sensor separate temperature probes sold separately *For more details, please download the PDF or feel free to contact us.*
Inquire About This Product
basic information
【Temperature】 Sensor: NTC 10KΩ (at 25℃) Measurement Range: -40 to +105℃ Resolution: 0.1℃ Accuracy: ±0.3℃ (0 to 70℃), ±0.4℃ (other than the above) Stability: 0.1℃/year 【Main Unit】 Wireless Frequency: 915.9 to 929.7MHz Transmission Distance: 300m with internal antenna, 500m with external antenna (line of sight) Logging Interval: 1, 2, 5, 10, 15, 30 seconds / 1, 2, 5, 10, 15, 30, 60 minutes Power Supply: Built-in 3.6V thionyl chloride lithium battery, non-rechargeable, battery size AA, 2-pin Molex 5264 connector Battery Life: Approximately 2 years (without repeater, measurement interval of 5 seconds, logging interval of 30 seconds) Operating Conditions: -20 to +70℃ / 0 to 100% RH, no condensation Dimensions: 129×80×55mm (excluding probe and external antenna) Weight: Approximately 250g Housing Material: Polycarbonate Protection Rating: IP67 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
● Food services (frozen containers, refrigeration and low-temperature storage, food processing and transportation) ● Health-related (storage of pharmaceuticals, vaccines, and blood, incubators, monitoring of operating rooms) ● Greenhouses and other agricultural applications ● Environmental analysis (air quality, meteorology, and hydrology) ● Monitoring of solar panels and power generation ● Monitoring of museums and archives ● Transportation of fragile products (impact monitoring through acceleration measurement) ● Air conditioning industry ● Clean rooms ● Research and laboratories ● Processes in the industrial sector ● Buildings, offices, schools *For more details, please download the PDF or feel free to contact us.*
