"Waterproof type" 4 temperature input wireless data logger [outdoor]

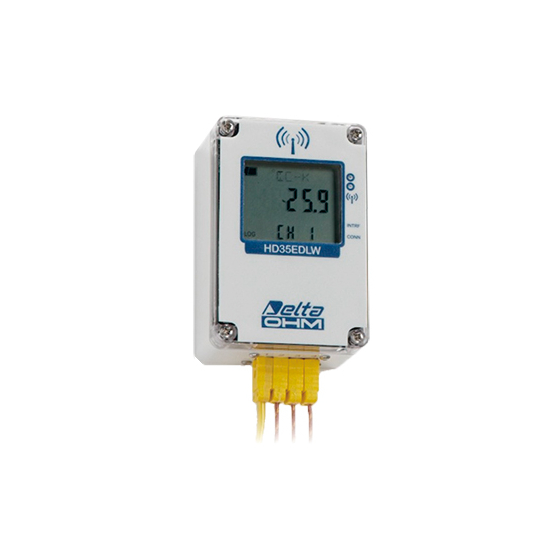

HD35EDWK/4TC・HD35EDLWK/4TC: Waterproof 4-channel thermocouple wireless logger [Outdoor] by Senseka.
Waterproof housing specification! Automatically records outdoor temperature with four thermocouple probes and transmits wirelessly!
The HD35EDWK/4TC and HD35EDLWK/4TC are outdoor waterproof 4-channel thermocouple temperature input wireless data loggers from the Senseca HD35 series. ■ IP67 waterproof housing specification for outdoor temperature monitoring ■ Equipped with 4 inputs for K/J/T/N/E thermocouple temperature probes ■ Stores 36,000 to 68,000 data points in internal memory ■ Wirelessly transmits recorded data to the master unit at regular intervals or on demand ■ Supports audible alarms via built-in buzzer ■ Configurable with HD35AP-S software ■ Powered by a built-in battery, with options for mast mounting or outdoor installation ■ The model for Japan features an integrated external antenna *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Temperature】 Sensor: K, J, T, N, E thermocouples Measurement Range: K: -200 to +1370℃, J: -100 to +750℃ T: -200 to +400℃, N: -200 to +1300℃ E: -200 to +750℃ Resolution: 0.1℃ Accuracy (excluding probe error): ±0.1 to 0.2℃ 【Main Unit】 Wireless Frequency: 915.9 to 929.7MHz Transmission Distance: 300m with internal antenna, 500m with external antenna in line of sight Logging Interval: 1, 2, 5, 10, 15, 30 seconds / 1, 2, 5, 10, 15, 30, 60 minutes Power Supply: Built-in 3.6V thionyl chloride lithium battery, non-rechargeable, battery size AA, 2-pin Molex 5264 connector Battery Life: Approximately 4 years (without repeater, measurement interval of 10 seconds, logging interval of 30 seconds) Operating Conditions: -20 to +70℃ / 0 to 100% RH, no condensation Dimensions: 120×80×55mm (excluding probe and external antenna) Weight: Approximately 250g Housing Material: Polycarbonate Protection Rating: IP67 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
● Food services (frozen containers, refrigeration and low-temperature storage, food processing and transportation) ● Health-related (storage of pharmaceuticals, vaccines, and blood, incubators, monitoring of operating rooms) ● Greenhouses and other agricultural applications ● Environmental analysis (air quality, meteorology, and hydrology) ● Monitoring of solar panels and power generation ● Monitoring of museums and archives ● Transportation of fragile products (monitoring of impacts through acceleration measurement) ● Air conditioning industry ● Clean rooms ● Research and laboratories ● Processes in the industrial sector ● Buildings, offices, schools *For more details, please download the PDF or feel free to contact us.*
