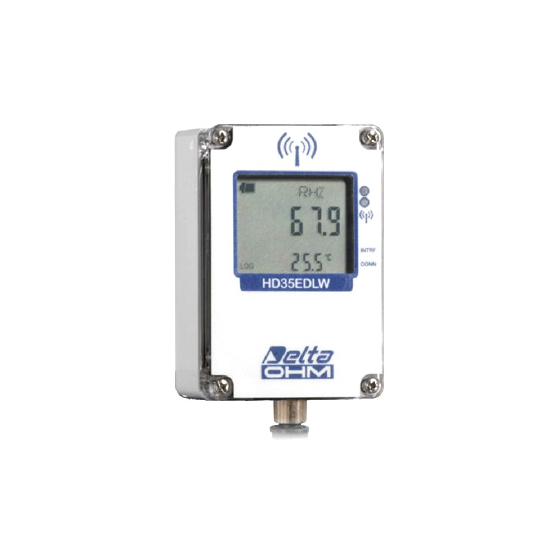

"Waterproof type" temperature and humidity wireless data logger [outdoor]
HD35EDW1NTC・HD35EDLW1NTC
Waterproof housing specification! Automatic recording and wireless transmission of outdoor temperature and humidity with a separate temperature and humidity probe!
The HD35EDW1NTC/HD35EDLW1NTC is an outdoor waterproof wireless data logger for temperature and humidity from the Senseca HD35 series. ■ IP67 waterproof housing specification for measuring outdoor temperature and relative humidity ■ Connectable to a cable-attached separate temperature and relative humidity composite probe via M12 connector ■ Stores 24,000 data points in internal memory ■ Wirelessly transmits recorded data to the master unit at regular intervals or on demand ■ Capable of calculating dew point temperature, wet bulb temperature, absolute humidity, mixing ratio, and water vapor partial pressure ■ Supports audible alarms via built-in buzzer ■ Configurable with software HD35AP-S ■ Powered by an internal battery, with options for mast mounting and outdoor installation ■ Cable-attached separate temperature and relative humidity composite probe sold separately *For more details, please download the PDF or feel free to contact us.*
Inquire About This Product
basic information
【Relative Humidity】 Measurement Range: 0–100% RH Accuracy: - ±1.8% RH (0–85% RH) at 15–35℃, ±2.5% RH (85–100% RH) - ±(2+1.5% rdg.)% outside the above temperature range Sensor Operating Temperature: -20 to +80℃ 【Temperature】 Measurement Range: -40 to +105℃ Accuracy: ±0.3℃ (0–70℃), ±0.4℃ (other than the above) 【Main Unit】 Wireless Frequency: 915.9–929.7 MHz Transmission Distance: 300m with internal antenna, over 500m with external antenna in line of sight Logging Interval: 1 second or more Power Supply: Built-in 3.6V thionyl chloride lithium battery, non-rechargeable, battery size AA, 2-pin Molex 5264 connector Battery Life: Approximately 2 years (without repeater, measurement interval of 5 seconds, logging interval of 30 seconds) Operating Conditions: -20 to +70℃ / 0 to 100% RH, no condensation Dimensions: 129×80×55mm (excluding probe and external antenna) Weight: Approximately 250g Housing Material: Polycarbonate Protection Rating: IP67 *For more details, please download the PDF or feel free to contact us.*
Price range
Delivery Time
Applications/Examples of results
● Food services (frozen containers, refrigeration and low-temperature storage, food processing and transportation) ● Health-related (storage of pharmaceuticals, vaccines, blood, incubators, monitoring of operating rooms) ● Greenhouses and other agricultural applications ● Environmental analysis (air quality, meteorology, and hydrology) ● Monitoring of solar panels and power generation ● Monitoring of museums and archives ● Transportation of fragile products (monitoring of shocks through acceleration measurement) ● Air conditioning industry ● Clean rooms ● Research and laboratories ● Processes in the industrial sector ● Buildings, offices, schools *For more details, please download the PDF or feel free to contact us.*
