Wireless Data Logger for Temperature and Humidity [Outdoor]

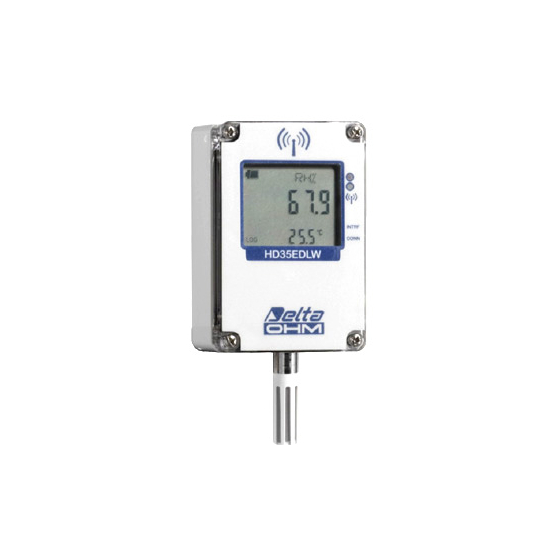

HD35EDW1NTVI/HD35EDLW1NTVI: Waterproof Wireless Data Logger for Temperature and Humidity [Outdoor] by Senseka
Waterproof housing specification! Integrated temperature and humidity lower probe for automatic recording and wireless transmission of outdoor temperature and humidity!
The HD35EDW1NTVI/HD35EDLW1NTVI is an outdoor waterproof temperature and humidity wireless data logger from Senseca's "HD35 series" wireless data logging system. ■ IP67 waterproof housing specification for measuring outdoor temperature and relative humidity ■ Integrated temperature sensor in the relative humidity module with a combined temperature and humidity probe ■ Stores 24,000 data points in internal memory ■ Wirelessly transmits recorded data to the master unit at regular intervals or on demand ■ Capable of calculating dew point temperature, wet bulb temperature, absolute humidity, mixing ratio, and water vapor partial pressure ■ Supports audible alarms via built-in buzzer ■ Configurable with software HD35AP-S ■ Powered by a built-in battery, with options for mast mounting and outdoor installation ■ The version for Japan features an integrated external antenna *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Relative Humidity】 Measurement Range: 0–100% RH Accuracy: ±2.5% RH (0–85% RH), ±3.5% RH (85–100% RH) (at T=23℃) 【Temperature】 Measurement Range: -40–+105℃ Accuracy: ±0.2℃ (0–60℃), ±(0.2-0.05*T)℃ (T=-40–0℃), ±[0.2+0.032*(T-60)]℃ (T=60–105℃) 【Main Unit】 Wireless Frequency: 915.9–929.7 MHz Transmission Distance: 300 m with internal antenna, over 500 m with external antenna (line of sight) Logging Interval: 1 second and above Power Supply: Built-in 3.6V thionyl chloride lithium battery, non-rechargeable, battery size AA, 2-pin Molex 5264 connector Battery Life: Approximately 2 years (without repeater, measurement interval of 5 seconds, logging interval of 30 seconds) Operating Conditions: -20–+70℃ / 0–100% RH, no condensation Dimensions: 170×80×55 mm (excluding external antenna) Weight: Approximately 250 g Housing Material: Polycarbonate Protection Rating: IP67 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
● Food services (frozen containers, refrigeration and low-temperature storage, food processing and transportation) ● Health-related (storage of pharmaceuticals, vaccines, and blood, incubators, monitoring of operating rooms) ● Greenhouses and other agricultural applications ● Environmental analysis (air quality, meteorology, and hydrology) ● Monitoring of solar panels and power generation ● Monitoring of museums and archives ● Transportation of fragile products (monitoring of shocks through acceleration measurement) ● Air conditioning industry ● Clean rooms ● Research and laboratories ● Processes in the industrial sector ● Buildings, offices, schools *For more details, please download the PDF or feel free to contact us.*
