"Waterproof type" temperature, humidity, and atmospheric pressure wireless data logger [outdoor]

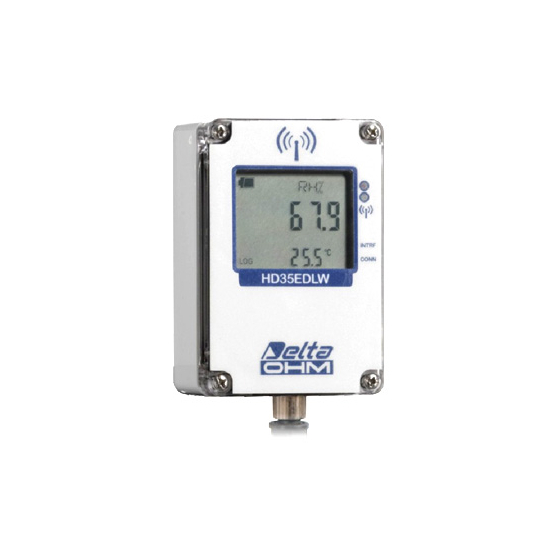

HD35EDW14b7PTC/HD35EDLW14b7PTC: Waterproof Temperature and Humidity / Atmospheric Pressure Wireless Data Logger [Outdoor] by Senseka
Waterproof housing specification! Wireless transmission of outdoor environment with Pt100 composite temperature and humidity probe and built-in atmospheric pressure sensor!
The HD35EDW14b7PTC/HD35EDLW14b7PTC is an outdoor waterproof temperature, humidity, and atmospheric pressure wireless data logger from Senseca's "HD35 Series" wireless data logging system. ■ IP67 waterproof housing specification for measuring outdoor temperature, relative humidity, and atmospheric pressure ■ Capable of connecting a composite temperature and humidity probe with a Pt100 temperature sensor and high-precision relative humidity sensor ■ Built-in atmospheric pressure sensor for monitoring outdoor environments with a single unit ■ Stores 22,000 data points in internal memory ■ Wirelessly transmits recorded data to the master unit at regular intervals or on demand ■ Capable of calculating dew point temperature, wet bulb temperature, absolute humidity, mixing ratio, and water vapor partial pressure ■ Supports audible alarms via a built-in buzzer ■ Configurable with software HD35AP-S ■ Separate temperature and relative humidity composite probe with cable sold separately *For more details, please download the PDF or feel free to contact us.*
Inquire About This Product
basic information
【Relative Humidity】 Measurement Range: 0–100% RH Accuracy: - ±1.8% RH (0–85% RH) at 15–35°C / ±2.5% RH (85–100% RH) - ±(2+1.5% rdg.)% in temperature ranges outside the above 【Temperature】 Measurement Range: -40 to +150°C (for probe HP3517ETC□) Accuracy: JIS C1604:2013 【Atmospheric Pressure】 Measurement Range: 300–1100 hPa Accuracy: ±0.5 hPa (800–1100 hPa at 25°C), ±1 hPa (300–1100 hPa at 0–50°C) 【Main Unit】 Wireless Frequency: 915.9–929.7 MHz Transmission Distance: 300 m with internal antenna, 500 m with external antenna (line of sight) Logging Interval: 1 second or more Power Supply: Built-in 3.6V thionyl chloride lithium battery, non-rechargeable, battery size AA, 2-pin Molex 5264 connector Battery Life: Approximately 2 years Operating Conditions: -20 to +70°C / 0–100% RH, no condensation Dimensions: 129×80×55 mm (excluding probe and external antenna) Protection Rating: IP67 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
● Food services (frozen containers, refrigeration and low-temperature storage, food processing and transportation) ● Health-related (storage of pharmaceuticals, vaccines, and blood, incubators, monitoring of operating rooms) ● Greenhouses and other agricultural applications ● Environmental analysis (air quality, meteorology, and hydrology) ● Monitoring of solar panels and power generation ● Monitoring of museums and archives ● Transportation of fragile products and corrosion (monitoring of shocks through acceleration measurement) ● Air conditioning industry ● Clean rooms ● Research and laboratories ● Processes in industrial sectors ● Buildings, offices, schools *For more details, please download the PDF or feel free to contact us.*
