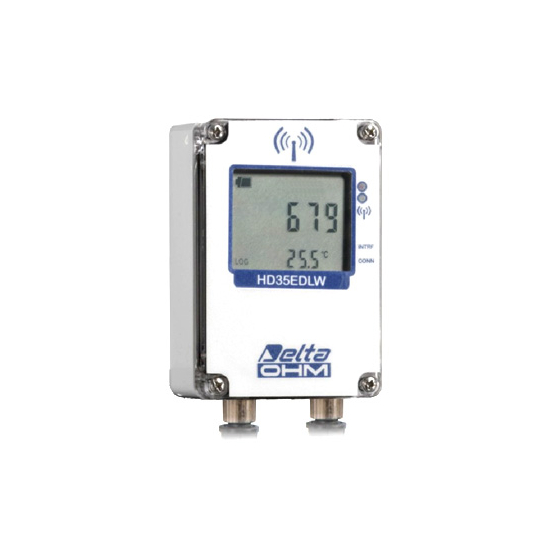

"Waterproof type" Solar Radiation / Pt100 Temperature Wireless Data Logger [Outdoor]
HD35EDW7PRTC/HD35EDLW7PRTC: Waterproof solar radiation and Pt100 temperature wireless data logger [Outdoor] by Senseka.
Waterproof housing specification! Records solar radiation and Pt100 temperature, wirelessly transmits measurement data to the main unit!
The HD35EDW7PRTC/HD35EDLW7PRTC is an outdoor waterproof solar radiation and Pt100 temperature wireless data logger from Senseca's "HD35 Series" wireless data logging system. ■ IP67 waterproof housing specification, suitable for outdoor solar radiation and temperature monitoring ■ Compatible with connections for solar radiation sensors and Pt100 temperature sensors ■ Stores 36,000 data points in internal memory ■ Wirelessly transmits recorded data to the master unit at regular intervals or on demand ■ Capable of calculating daily accumulated solar radiation (Wh/m²) ■ Supports mV display of solar radiation sensor signals ■ Features audible alarms via a built-in buzzer ■ Configurable with software HD35AP-S ■ Powered by a built-in battery, also supports outdoor installation options *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Solar Radiation】 Sensor: Thermopile Measurement Range: 0–2000W/m² Sensitivity: Configurable in mV/(kW/m²) 【Temperature (for Solar Panels)】 Sensor: Pt100 1/3DIN Measurement Range: -40 to +85℃ Accuracy: Class A JIS C1604:2013 Stability: 0.1℃/year 【Main Unit】 Wireless Frequency: 915.9–929.7MHz Transmission Distance: 300m with internal antenna, 500m with external antenna (line of sight) Logging Interval: 1, 2, 5, 10, 15, 30 seconds / 1, 2, 5, 10, 15, 30, 60 minutes Power Supply: Built-in 3.6V thionyl chloride lithium battery, non-rechargeable, battery size AA, 2-pin Molex 5264 connector Battery Life: Approximately 2 years (without repeater, measurement interval 5 seconds, logging interval 30 seconds) Operating Conditions: -20 to +70℃ / 0 to 100% RH, no condensation Dimensions: 129×80×55mm (excluding probe and external antenna) Weight: Approximately 250g Housing Material: Polycarbonate Protection Rating: IP67 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
● Food services (frozen containers, refrigeration and low-temperature storage, food processing and transportation) ● Health-related (storage of pharmaceuticals, vaccines, and blood, incubators, operating room monitoring) ● Greenhouses and other agricultural applications ● Environmental analysis (air quality, meteorology, and hydrology) ● Monitoring of solar panels and power generation ● Monitoring of museums and archives ● Transportation of fragile products (impact monitoring through acceleration measurement) ● Air conditioning industry ● Clean rooms ● Research and laboratories ● Industrial process sectors ● Buildings, offices, schools *For more details, please download the PDF or feel free to contact us.*
