"Waterproof type" Wireless data logger for rainfall [outdoor]

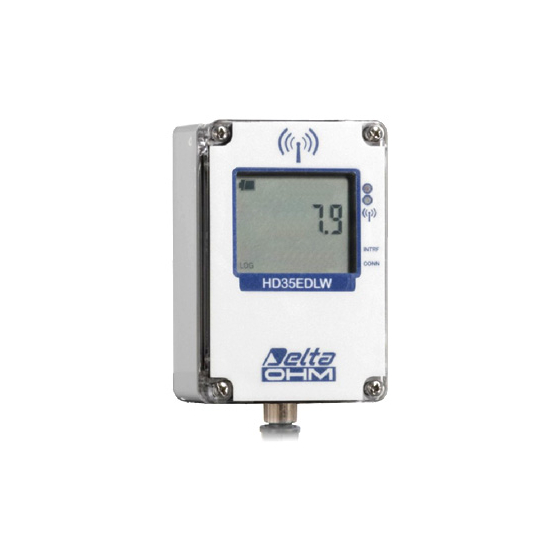

HD35EDWPTC/HD35EDLWPTC: Waterproof wireless data logger for rainfall [outdoor] by Senseka.
Waterproof housing specification! Records rainfall and precipitation rate, wirelessly transmits measurement data to the main unit!
Product Introduction The HD35EDWPTC/HD35EDLWPTC is an outdoor waterproof wireless data logger for rainfall from the "HD35 Series" wireless data logging system manufactured by Senseca. The HD35 Series supports monitoring of various physical quantities, including rainfall. ■ IP67 waterproof housing specification, suitable for outdoor rainfall monitoring ■ Equipped with one input with M12 connector for rain gauge ■ Stores 36,000 data points in internal memory ■ Wirelessly transmits recorded data to the master unit at regular intervals or on demand ■ Capable of calculating rainfall rate (mm/h) and daily rainfall (mm) ■ Supports audible alarms via built-in buzzer ■ Configurable with software HD35AP-S ■ Powered by built-in battery, also supports outdoor installation options ■ For Japan, features an integrated external antenna specification *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Rainfall】 Sensor: Tilt switch, NC (normally closed) or NO (normally open) variable contact output Resolution (data logger): Can be set to 0.1mm, 0.2mm, or 0.5mm/pulse 【Main Unit】 Wireless frequency: 915.9 to 929.7MHz Transmission distance: 300m with internal antenna, 500m with external antenna in line of sight Logging interval: 1, 2, 5, 10, 15, 30 seconds / 1, 2, 5, 10, 15, 30, 60 minutes Power supply: Built-in 3.6V thionyl chloride lithium battery, non-rechargeable, battery size AA, 2-pin Molex 5264 connector Battery life: Approximately 2 years (without repeater, measurement interval of 5 seconds, logging interval of 30 seconds) Operating conditions: -20 to +70℃ / 0 to 100% RH, no condensation Dimensions: 129×80×55mm (excluding probe and external antenna) Weight: Approximately 250g Housing material: Polycarbonate Protection rating: IP67 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
● Food services (frozen containers, refrigeration and low-temperature storage, food processing and transportation) ● Health-related (storage of pharmaceuticals, vaccines, and blood, incubators, monitoring of operating rooms) ● Greenhouses and other agricultural applications ● Environmental analysis (air quality, meteorology, and hydrology) ● Monitoring of solar panels and power generation ● Monitoring of museums and archives ● Transportation of fragile products (monitoring of shocks through acceleration measurement) ● Air conditioning industry ● Clean rooms ● Research and laboratories ● Processes in industrial sectors ● Buildings, offices, schools *For more details, please download the PDF or feel free to contact us.*
