"Waterproof type" Wireless data logger for temperature, humidity, and leaf surface moisture [outdoor]

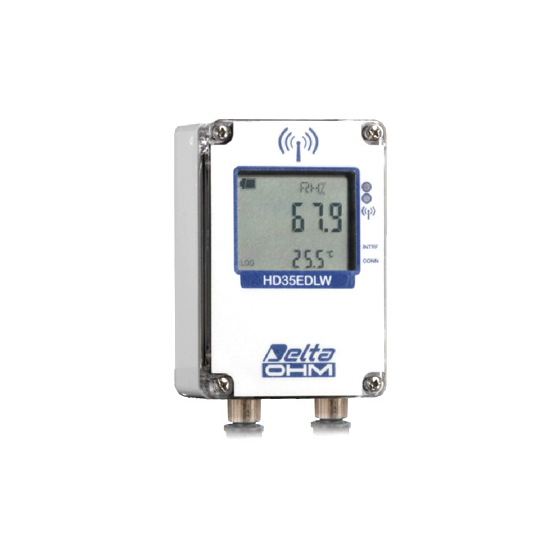

HD35EDW1NLTC/HD35EDLW1NLTC: Waterproof Temperature and Humidity Leaf Surface Moisture Wireless Data Logger [Outdoor] by Senseka
Waterproof housing specification! Records temperature, humidity, and leaf surface moisture, and wirelessly transmits measurement data to the main unit!
The HD35EDW1NLTC/HD35EDLW1NLTC is an outdoor waterproof temperature and humidity leaf surface moisture wireless data logger from Senseca's "HD35 Series" wireless data logging system. ■ IP67 waterproof housing specification for measuring outdoor temperature, relative humidity, and leaf surface moisture ■ Compatible with temperature and relative humidity combined probes and leaf surface moisture sensors ■ Equipped with 2 inputs with M12 connectors, ideal for monitoring agricultural and meteorological applications ■ Stores 22,000 data points in internal memory ■ Wirelessly transmits recorded data to the master unit at regular intervals or on demand ■ Capable of calculating dew point temperature, wet bulb temperature, absolute humidity, mixing ratio, and water vapor pressure ■ Supports audible alarms via built-in buzzer ■ Configurable with HD35AP-S software ■ Powered by a built-in battery, also supports outdoor installation options *For more details, please download the PDF or feel free to contact us.*
Inquire About This Product
basic information
【Relative Humidity】 Measurement Range: 0–100% RH Accuracy: - ±1.8% RH (0–85% RH) at 15–35℃, ±2.5% RH (85–100% RH) - ±(2+1.5% rdg.)% outside the above temperature range 【Temperature】 Measurement Range: -40 to +105℃ Accuracy: ±0.3℃ (0–70℃), ±0.4℃ (other than the above) 【Leaf Surface Moisture】 Measurement Range: 0–100%, leaf surface moisture Accuracy: ±5% 【Main Unit】 Wireless Frequency: 915.9–929.7 MHz Transmission Distance: 300m with internal antenna, over 500m with external antenna in line of sight Logging Interval: 1 second and up Power Supply: Built-in 3.6V thionyl lithium battery, non-rechargeable, battery size AA, 2-pin Molex 5264 connector Battery Life: Approximately 2 years Operating Conditions: -20 to +70℃ / 0 to 100% RH, no condensation Dimensions: 129×80×55mm (excluding probe and external antenna) Weight: Approximately 250g Housing Material: Polycarbonate Protection Rating: IP67 *For more details, please download the PDF or feel free to contact us.*
Price range
Delivery Time
Applications/Examples of results
● Food service (frozen containers, refrigeration and low-temperature storage, food processing and transportation) ● Health-related (storage of pharmaceuticals, vaccines, and blood, incubators, monitoring of operating rooms) ● Greenhouses and other agricultural applications ● Environmental analysis (air quality, meteorology, and hydrology) ● Monitoring of solar panels and power generation ● Monitoring of museums and archives ● Transportation of fragile products and corrosion (monitoring of shocks through acceleration measurement) ● Air conditioning industry ● Clean rooms ● Research and laboratories ● Processes in the industrial sector ● Buildings, offices, schools *For more details, please download the PDF or feel free to contact us.*
