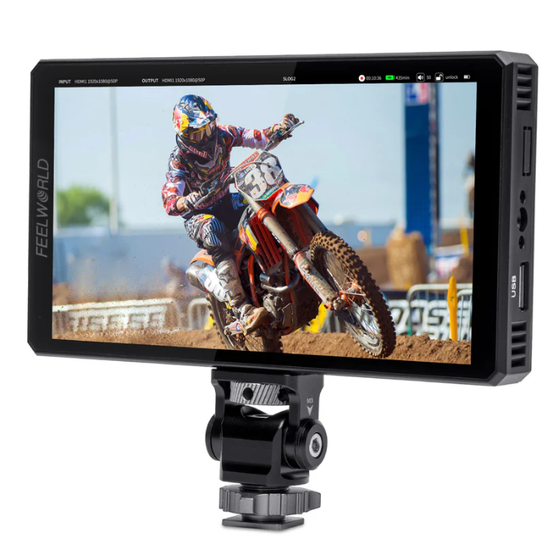

FEELWORLD, 6-inch 4K HDMI & 3G-SDI, 1500NIT, monitor for DSLR cameras and camcorders.
【FEELWORLD SC6 Features】 ■ 6-inch wide (16:9) IPS LCD panel ■ 1920x1080 high-resolution LCD ■ High resolution 4096x2160 (4K DCI) display ■ Ultra-high brightness 1500cd/m2 LED backlight ■ Robust and durable aluminum housing ■ Touch panel equipped for easy menu operation ■ Capable of reading, editing, and displaying 3D-LUT ■ 8.4V DC output for powering cameras ■ HDMI input x1, HDMI output x1 ■ Audio output (3.5mm) x1 ■ Shooting assist functions (False Color, Check Field, Zoom-in) ■ Battery compatible (F970)
Inquire About This Product
basic information
Specifications - Panel: 6-inch wide (16:9) IPS LCD with LED backlight - Display resolution: 720p to 4096x2160p (4K) - Physical pixels: 1920x1080 - LCD brightness: 1500cd/m² - Contrast: 1000:1 - Viewing angle: 80°/80° (left/right) 80°/80° (up/down) - Input signals: SDI (3G), HDMI (2.0), USB Type-C (3D-LUT, firmware update) - Output signals: SDI (3G), HDMI (2.0) - DI input, SDI output: BNC - Power supply / Power consumption: DC 7-24V / 18W - Dimensions / Weight: 165(W)x103(H)x28.8(D)mm / 398g - Operating temperature: -20 to 50℃ Package contents - Main unit - Mini hot shoe mount - Cable tie - Manual - AC adapter AC100V DC12V - USB-A to USB-C conversion adapter - Mini HDMI cable - HDMI cable - Sunshade + frame
Price range
Delivery Time
※If in stock, we will deliver immediately.
Applications/Examples of results
4K UHD/Full HD camera, monitor use for film shooting, etc.
