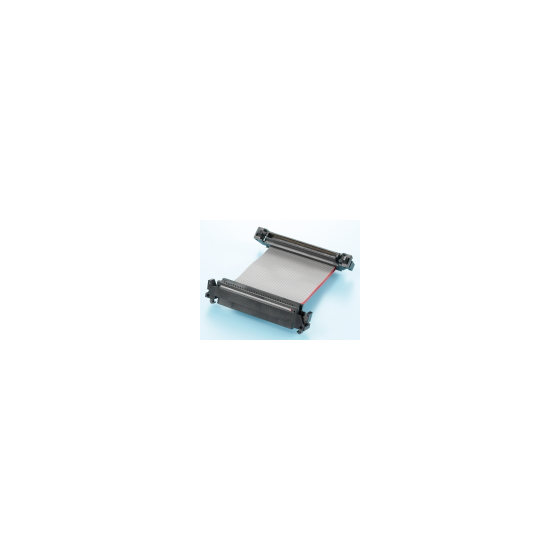

0.635mm pitch 2-piece connector / 0.635mm pitch FC compatible product 8622E series
The 8622E series is a two-piece connector compatible with 0.635mm pitch flat cables (AWG#30). The cable crimping is performed using our unique cable clamping method. This clamping method has gained significant recognition and proven results with our half-pitch connectors, enhancing the reliability of the series. Since it uses two layers of 0.635mm pitch flat cables, it is also possible to connect one 8622E series connector to one end of the cable and two of our half-pitch cable connectors (8925E/8825E series) to the opposite end. The series is designed to ensure an effective mating length of 1.4mm, boasting high contact reliability and a precision design with coplanarity of 0.1mm. By adopting a one-touch eject lock mechanism for the cable-side connector that allows for one-handed attachment and detachment, it has become a user-friendly product that improves work efficiency. *Please note that we do not sell the "8622□N-□□□" connector individually, as it is provided as a completed harness product. For inquiries regarding the cables and harness specifications, please contact our sales representatives.
Inquire About This Product
basic information
The 8622E series is a two-piece connector compatible with 0.635mm pitch flat cables (AWG#30). The cable crimping is performed using our unique cable clamping method. This clamping method has gained significant recognition and success with our half-pitch connectors, enhancing the reliability of the series. Since it uses two layers of 0.635mm pitch flat cables, it is also possible to connect one 8622E series connector to one end of the cable and connect two of our half-pitch cable connectors (8925E/8825E series) to the opposite end. The series is designed to ensure an effective mating length of 1.4mm, boasting high contact reliability and a precise design with coplanarity of 0.1mm. By adopting a one-touch eject lock mechanism for the cable-side connector, it has become a user-friendly product that improves work efficiency. *Please note that the "8622□N-□□□" connector is not sold individually, as it is provided by our company as a completed harness. For inquiries regarding the cables or harness specifications to be used, please contact our sales representatives.
Price information
-
Delivery Time
Applications/Examples of results
−
catalog（1）
Download All Catalogs
