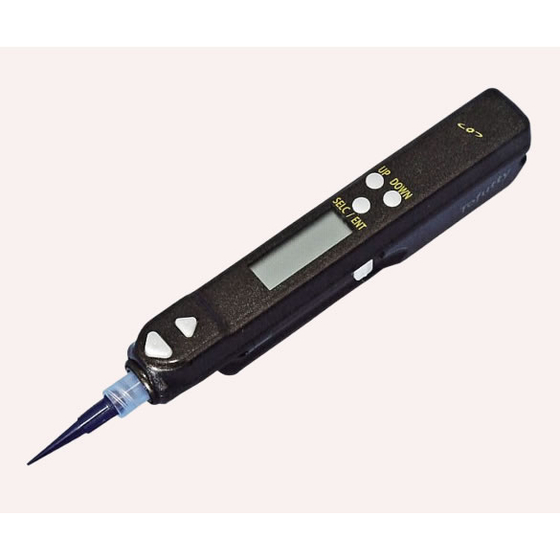

Rechargeable high-viscosity liquid high-precision quantitative dispensing model number M2840TX-1602A
●Compatible with high viscosity liquid agents, capable of dispensing up to 200,000 mPa·s, also suitable for solder paste and grease.
● High precision: Achieves micro-volume dispensing starting from 0.1μL. ● Cordless design for immediate use in necessary locations. Lightweight to reduce work burden.
Inquire About This Product
basic information
■Specifications Model Number: M2840TX-1602A Filling Capacity: 1,000μL Dispensing Volume Setting Range: 0.1μL to 100μL Accuracy※1 Reproducibility (C.V.): 1μL≦10% Accuracy: 1μL±10% Dimensions (mm): Width 23 × Height 38 × Length 149 Weight: Approximately 75g (including rechargeable battery) Speed Setting: 5 levels for both suction and dispensing 8.2μL to 20.5μL/s Dispensable Viscosity: Below 200,000mPa·s Suction Viscosity: Below 20,000mPa·s※2 Battery: AA size nickel-metal hydride battery (Operational Guarantee: Panasonic rechargeable eneloop BK-4HCD) Number of Continuous Operations per Charge: Approximately 3,500 times※3 Nozzle: Luer lock type nozzle (Operational Guarantee Nozzle: Musashi Engineering tapered nozzle 22G) Included Accessories: 1 AA size nickel-metal hydride battery 1 clear syringe 1 plunger 1 tapered nozzle (22G) 1 needle cap
Price range
Delivery Time
Applications/Examples of results
*1: Standard viscosity liquid with a viscosity of 1,800 mPa·s used *2: Tapered nozzle 20G used *3: Operating conditions (discharge volume 1μL, suck-back volume 1μL, standard viscosity liquid, discharge speed (SP1) Lo: low speed, suck-back speed (SP2) Hi: high speed, new battery used)
