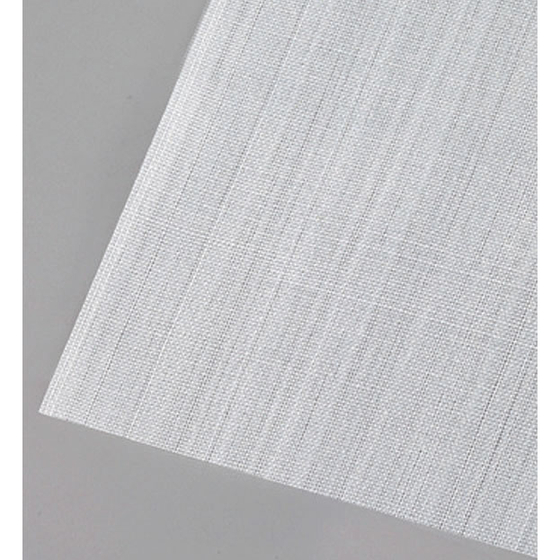

It has excellent heat resistance and chemical resistance, making it suitable for all experimental applications.
Additionally, it can be cut with scissors and has flexibility, making it possible to sew with a sewing machine, etc. ◎Heat resistance temperature: 260°C
Inquire About This Product
basic information
■Specifications Item Number Mesh Opening Size (μm) Wire Diameter (μm) Aperture Ratio (%) Width (mm) M480PTFE-56102F 100 10 250 1 1000 M480PTFE-56109F 85 30 269 0.996 M480PTFE-56103F 80 50 270 3 M480PTFE-56104F 70 100 260 8 M480PTFE-56105F 60 200 220 23 M480PTFE-56106F 50 300 200 37 M480PTFE-56107F 30 600 250 50 M480PTFE-56108F 20 970 300 58
Price range
Delivery Time
Applications/Examples of results
■Usage: Filters for filtration, cleaning jigs, etc. *PTFE mesh is originally woven into a mesh form from brown threads, and then the color is bleached to white. During this process, some brown parts may remain, but there is no issue with quality.
