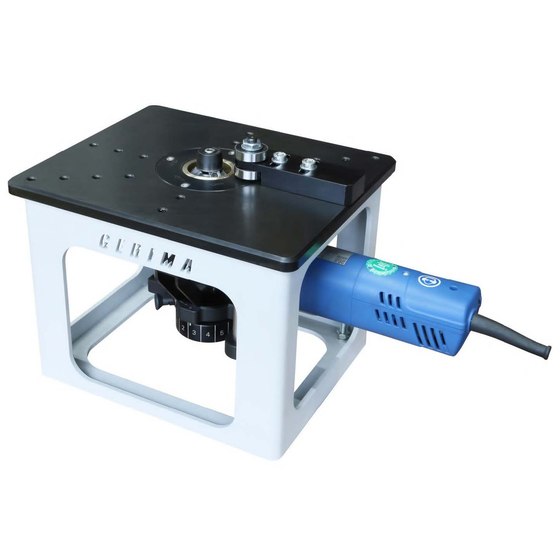

A portable table-type edge processing machine!
- Milling head with three interchangeable inserts, usable in eight directions, capable of chamfering and radius machining. Equipped with guide rollers. - The milling head quick change system 2.0 with a torque transmission mechanism makes it easy to replace not only the proven standard milling heads but also new high-performance milling heads, further improving work efficiency. - Equipped with the proven drive and cutting technology of SMA 30 AER. - A sturdy table frame and height-adjustable legs allow for stable installation, making it ideally suited for various working environments. - Electronic package with speed control, electrical safety shutdown, restart protection, and soft start function.
Inquire About This Product
basic information
Specifications Adjustment Range / a / 7.5mm Opening Width / C / Maximum 8mm Opening Angle / α / 0°-80° R Opening / r / 1.2-6mm Number of Insert Chips / Z / 3 pieces Power / P / 1,500W Rotational Speed / n / 2,500-7,900 min-1 Weight / G / 4.8kg Voltage / V / 230V Length of I Leg / b Diagonal / β / Figure 1 Opening Height / h / Figure 1 Opening Size / A / Figure 1 Root Face / s / Figure 1
Price range
Delivery Time
※As this is an imported item, we require "2 to 3 months" for processing. Please understand that the delivery date may vary depending on the circumstances.
Applications/Examples of results
Small to medium-sized bevel processing with a bevel width of up to 8mm on straight edges and contours for welding preparation. Processing with a radius of 1.2 to 6mm to prepare for painting or coating, or to reduce notch effects on parts subjected to high dynamic loads. Processing of optical bevels and functional edges. Capable of processing various materials (steel, stainless steel, non-ferrous metals, plastics) due to built-in speed control. Example of industries where this product is recommended: mechanical engineering, shipbuilding, steel structures, tool manufacturing, mold manufacturing, small batch production, prototype production, etc.
Detailed information
-
Figure 1
