A compact CoaXPress camera for high-speed and high-precision identification of automotive manufacturing parts.
In the automotive manufacturing industry, accurate and rapid identification of components is essential for a reliable production process. Particularly when dealing with high-speed robotic arms and a wide variety of parts, the camera's resolution, frame rate, and compactness significantly impact identification accuracy and the robot's responsiveness. Our product is an industry-leading, compact CoaXPress camera that meets these demands. 【Application Scenarios】 - Component identification on assembly lines - Foreign object detection during inspection processes - Object recognition in picking robots 【Benefits of Implementation】 - Reduced defect rates due to improved accuracy in component identification - Increased productivity from enhanced robot operation speed - Easier camera installation in limited spaces - Reduced complexity in wiring tasks
Inquire About This Product
Related Videos
basic information

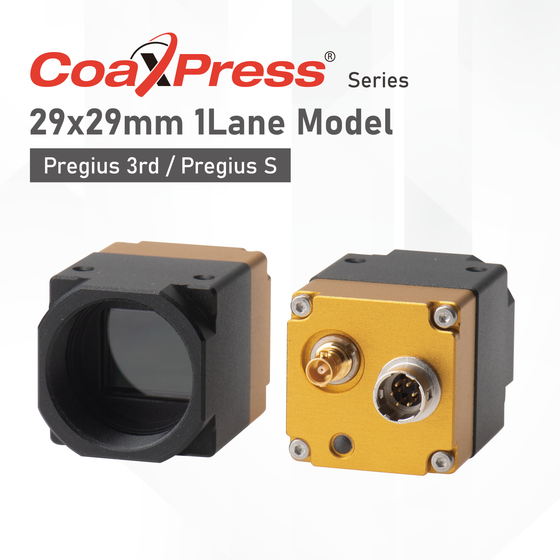

【Features】 - Compact 1Lane CoaXPress camera with a size of 29mm square - Equipped with SONY Pregius 3rd/4th generation CMOS sensor - Lineup of 8 different resolutions ranging from 0.5MP to 24.6MP - Normal Speed/High Speed models available, with options for Mono/Color (total of 33 models) - Reduced wiring stress and minimized impact on installation environment through PoCXP support - Low power consumption and low heat generation achieved by adopting next-generation key devices (Ultra Low Power FPGA) 【Our Strengths】 - Actively adopting next-generation key devices to achieve low power consumption and low heat generation - Mechanical design and production technology that achieves a high balance of compactness, heat dissipation, and mass production - Electrical design that maximizes the performance of various sensors and ensures industrial quality - Cost competitiveness leveraging the purchasing power and procurement capabilities of our parent company BOPIXEL - Advanced manufacturing combined with Japan's precision and delicacy
Price range
Delivery Time
Applications/Examples of results
Semiconductor front-end/back-end visual inspection, various alignments, and industrial image processing focused on semiconductors and electronics.
Line up（33）
| Model number | overview |
|---|---|
| BC-SMS05M3X1N | 0.5MP (IMX433) / mono / 243fps / CXP-3 / C mount / MicroBNC connector / Standard Model |
| BC-SCS05M3X1N | 0.5MP (IMX433) / color / 243fps / CXP-3 / C mount / Micro BNC connector / Standard Model |
| BC-SMS2M6X1N | 2MP (IMX430) / mono / 132fps / CXP-6 / C mount / Micro BNC connector / Standard Model |
| BC-SCS2M6X1N | 2MP (IMX430) / color / 132fps / CXP-6 / C mount / Micro BNC connector / Standard Model |
| BC-SMS5M10X1N | 5.1MP (IMX547) / mono / 122.9fps / CXP-10 / C mount / MicroBNC connector / Standard Model |
| BC-SCS5M10X1N | 5.1MP (IMX547) / color / 122.9fps / CXP-10 / C mount / Micro BNC connector / Standard Model |
| BC-SMS8M10X1N | 8.1MP (IMX546) / mono / 91fps / CXP-10 / C mount / MicroBNC connector / Standard Model |
| BC-SCS8M10X1N | 8.1MP (IMX546) / color / 91fps / CXP-10 / C mount / MicroBNC connector / Standard Model |
| BC-SMS12M10X1N | 12.4MP (IMX545) / mono / 68fps / CXP-10 / C mount / MicroBNC connector / Standard Model |
| BC-SCS12M10X1N | 12.4MP (IMX545) / color / 68fps / CXP-10 / C mount / MicroBNC connector / Standard Model |
| BC-SMS16M10X1N | 16.2MP (IMX542) / mono / 52.6fps / CXP-10 / C mount / Micro BNC connector / Standard Model |
| BC-SCS16M10X1N | 16.2MP (IMX542) / color / 52.6fps / CXP-10 / C mount / Micro BNC connector / Standard Model |
| BC-SMS20M10X1N | 20.4MP (IMX541) / mono / 42.7fps / CXP-10 / C mount / MicroBNC connector / Standard Model |
| BC-SCS20M10X1N | 20.4MP (IMX541) / color / 42.7fps / CXP-10 / C mount / MicroBNC connector / Standard Model |
| BC-SMS24M10X1N | 24.6MP (IMX540) / mono / 35.4fps / CXP-10 / C mount / MicroBNC connector / Standard Model |
| BC-SCS24M10X1N | 24.6MP (IMX540) / color / 35.4fps / CXP-10 / C mount / Micro BNC connector / Standard Model |
| BC-SMS05M10X1H | 0.5MP (IMX426) / mono / 1122fps / CXP-10 / C mount / Micro BNC connector / High-Speed Model |
| BC-SCS05M10X1H | 0.5MP (IMX426) / color / 1122fps / CXP-10 / C mount / Micro BNC connector / High-Speed Model |
| BC-SMS2M10X1H | 2MP (IMX422) / mono / 358.4fps / CXP-10 / C mount / Micro BNC connector / High-Speed Model |
| BC-SCS2M10X1H | 2MP (IMX422) / color / 358.4fps / CXP-10 / C mount / MicroBNC connector / High-Speed Model |
| BC-SMS5M12X1H | 5MP (IMX537) / mono / 236.4fps / CXP-12 / C mount / MicroBNC connector / High-Speed Model |
| BC-SCS5M12X1H | 5MP (IMX537) / color / 236.4fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SMS8M12X1H | 8.1MP (IMX536) / mono / 147.6fps / CXP-12 / C mount / MicroBNC connector / High-Speed Model |
| BC-SCS8M12X1H | 8.1MP (IMX536) / color / 147.6fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SMS12M12X1H | 12.4MP (IMX535) / mono / 96.6fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SCS12M12X1H | 12.4MP (IMX535) / color / 96.6fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SMS16M12X1H | 16.2MP (IMX532) / mono / 73.7fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SCS16M12X1H | 16.2MP (IMX532) / color / 73.7fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SMS20M12X1H | 20.4MP (IMX531) / mono / 58.6fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SCS20M12X1H | 20.4MP (IMX531) / color / 58.6fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SMS24M12X1H | 24.6MP (IMX530) / mono / 48.6fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SCS24M12X1H | 24.6MP (IMX530) / color / 48.6fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SUS8M12X1H | 8.1MP (IMX487) / UV / 133.2fps / CXP-12 / C mount / Micro BNC connector |
