A compact CoaXPress camera that enhances the speed and precision of various inspections and component identification.
In the manufacturing industry, accurate and rapid identification of objects during inspection and parts identification is essential for a reliable production process. Particularly when dealing with high-speed robotic arms and a wide variety of components, camera resolution, frame rate, and being compact and lightweight significantly affect identification accuracy and the robot's responsiveness. Our product is one of the industry's smallest CoaXPress cameras that meets these demands. 【Usage Scenarios】 - Parts identification on assembly lines - Foreign object detection in inspection processes - Object recognition in picking robots 【Benefits of Implementation】 - Reduction in defect rates due to improved accuracy in parts identification - Increased productivity from enhanced robot operating speeds - Easier camera installation in limited spaces - Reduction in complex wiring tasks
Inquire About This Product
Related Videos
basic information

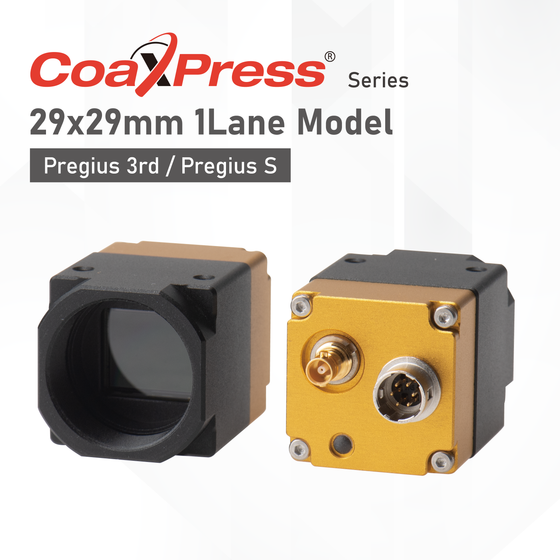

**Features** - Compact 1Lane CoaXPress camera with a 29mm square design - Equipped with SONY Pregius 3rd/4th generation CMOS sensor - Lineup of 8 different resolutions ranging from 0.5MP to 24.6MP - Options for Normal Speed/High Speed models, Mono/Color (total of 33 models) - Reduced wiring stress and minimized impact on installation environment through PoCXP support - Low power consumption and low heat generation achieved by adopting next-generation key devices (Ultra Low Power FPGA) **Our Strengths** - Proactively adopting next-generation key devices to achieve low power consumption and low heat generation - Mechanical design and production technology that balances compactness, heat dissipation, and mass production - Electrical design that maximizes the performance of various sensors and ensures industrial quality - Cost competitiveness leveraging the purchasing power and procurement capabilities of our parent company BOPIXEL - Advanced manufacturing combined with Japan's precision and delicacy
Price range
Delivery Time
Applications/Examples of results
Semiconductor front-end/back-end visual inspection, various alignments, and industrial image processing focused on semiconductors and electronics.
Line up（33）
| Model number | overview |
|---|---|
| BC-SMS05M3X1N | 0.5MP (IMX433) / mono / 243fps / CXP-3 / C mount / Micro BNC connector / Standard Model |
| BC-SCS05M3X1N | 0.5MP (IMX433) / color / 243fps / CXP-3 / C mount / Micro BNC connector / Standard Model |
| BC-SMS2M6X1N | 2MP (IMX430) / mono / 132fps / CXP-6 / C mount / Micro BNC connector / Standard Model |
| BC-SCS2M6X1N | 2MP (IMX430) / color / 132fps / CXP-6 / C mount / Micro BNC connector / Standard Model |
| BC-SMS5M10X1N | 5.1MP (IMX547) / mono / 122.9fps / CXP-10 / C mount / MicroBNC connector / Standard Model |
| BC-SCS5M10X1N | 5.1MP (IMX547) / color / 122.9fps / CXP-10 / C mount / Micro BNC connector / Standard Model |
| BC-SMS8M10X1N | 8.1MP (IMX546) / mono / 91fps / CXP-10 / C mount / MicroBNC connector / Standard Model |
| BC-SCS8M10X1N | 8.1MP (IMX546) / color / 91fps / CXP-10 / C mount / MicroBNC connector / Standard Model |
| BC-SMS12M10X1N | 12.4MP (IMX545) / mono / 68fps / CXP-10 / C mount / MicroBNC connector / Standard Model |
| BC-SCS12M10X1N | 12.4MP (IMX545) / color / 68fps / CXP-10 / C mount / MicroBNC connector / Standard Model |
| BC-SMS16M10X1N | 16.2MP (IMX542) / mono / 52.6fps / CXP-10 / C mount / Micro BNC connector / Standard Model |
| BC-SCS16M10X1N | 16.2MP (IMX542) / color / 52.6fps / CXP-10 / C mount / MicroBNC connector / Standard Model |
| BC-SMS20M10X1N | 20.4MP (IMX541) / mono / 42.7fps / CXP-10 / C mount / MicroBNC connector / Standard Model |
| BC-SCS20M10X1N | 20.4MP (IMX541) / color / 42.7fps / CXP-10 / C mount / Micro BNC connector / Standard Model |
| BC-SMS24M10X1N | 24.6MP (IMX540) / mono / 35.4fps / CXP-10 / C mount / Micro BNC connector / Standard Model |
| BC-SCS24M10X1N | 24.6MP (IMX540) / color / 35.4fps / CXP-10 / C mount / Micro BNC connector / Standard Model |
| BC-SMS05M10X1H | 0.5MP (IMX426) / mono / 1122fps / CXP-10 / C mount / Micro BNC connector / High-Speed Model |
| BC-SCS05M10X1H | 0.5MP (IMX426) / color / 1122fps / CXP-10 / C mount / Micro BNC connector / High-Speed Model |
| BC-SMS2M10X1H | 2MP (IMX422) / mono / 358.4fps / CXP-10 / C mount / MicroBNC connector / High-Speed Model |
| BC-SCS2M10X1H | 2MP (IMX422) / color / 358.4fps / CXP-10 / C mount / Micro BNC connector / High-Speed Model |
| BC-SMS5M12X1H | 5MP (IMX537) / mono / 236.4fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SCS5M12X1H | 5MP (IMX537) / color / 236.4fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SMS8M12X1H | 8.1MP (IMX536) / mono / 147.6fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SCS8M12X1H | 8.1MP (IMX536) / color / 147.6fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SMS12M12X1H | 12.4MP (IMX535) / mono / 96.6fps / CXP-12 / C mount / MicroBNC connector / High-Speed Model |
| BC-SCS12M12X1H | 12.4MP (IMX535) / color / 96.6fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SMS16M12X1H | 16.2MP (IMX532) / mono / 73.7fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SCS16M12X1H | 16.2MP (IMX532) / color / 73.7fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SMS20M12X1H | 20.4MP (IMX531) / mono / 58.6fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SCS20M12X1H | 20.4MP (IMX531) / color / 58.6fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SMS24M12X1H | 24.6MP (IMX530) / mono / 48.6fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SCS24M12X1H | 24.6MP (IMX530) / color / 48.6fps / CXP-12 / C mount / Micro BNC connector / High-Speed Model |
| BC-SUS8M12X1H | 8.1MP (IMX487) / UV / 133.2fps / CXP-12 / C mount / Micro BNC connector |
