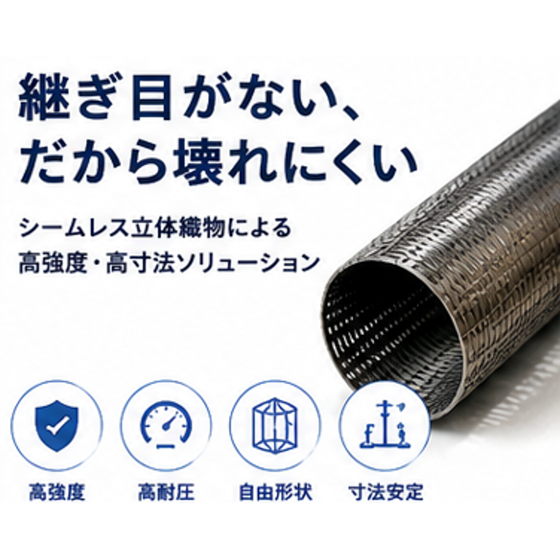

It is less likely to break because there are no seams (seamless three-dimensional fabric).
Because there are no seams, it is less likely to break. Seamless three-dimensional textiles open up new possibilities for strength, pressure resistance, and free shapes.
This is a seamless three-dimensional woven fabric that eliminates seams created by sewing or adhesive. Due to its woven structure, it has high dimensional stability and achieves a high-strength, high-pressure structure that does not have sewing parts as weak points. Furthermore, it can accommodate complex three-dimensional shapes that continuously change from small to large diameters due to its varying diameter structure. We support everything from prototyping to joint development and mass production considerations, assisting in the development of structures and products that have never existed before.
Inquire About This Product
basic information
Seamless structure three-dimensional tubular fabric. The maximum diameter of the large diameter section is 300mm (with past achievements of 1500mm), and the diameter ratio between the large and small diameter sections can accommodate up to approximately 5 times. In addition to polyester and nylon, it also supports high-performance fibers such as aramid, allowing for strength and pressure resistance designs tailored to specific applications. It can also accommodate complex shape formation through a different diameter structure and waterproofing through resin lining.
Price information
Consultation required.
Delivery Time
※Negotiation required (in-house manufacturing equipment available)
Applications/Examples of results
High-strength fabric formwork, bulb pile bags, pressure tank reinforcements, fuel tanks for drones, fire-fighting tanks, pipe reinforcements, water-stopping plugs, and various protective covers can be applied to a wide range of uses. In fact, there is a proven track record of using high-strength fabric formwork for bulb piles, contributing to increased support capacity, enhanced strength, improved dimensional stability, and better workability. Please consult us regarding special shapes and high-strength projects that are difficult to address with existing structures.
Detailed information
-
Because of its seamless structure, it is strong.
Company information
Ashimori Industry Co., Ltd. is a company engaged in the manufacturing of automotive parts, textile materials, and fire hoses. With outstanding development and technical capabilities, we have introduced many new products to the market and have expanded our business. We have established a solid foundation as a provider of industrial materials using textiles, diversified our business activities, and are now active in fields that go beyond the traditional image of the textile industry.
