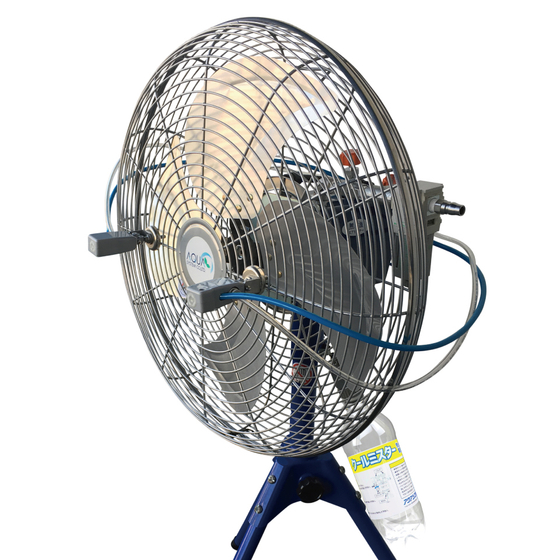

Direct water connection type Cool Mister ACM-AW/ACM-EW
ACM-AW/ACM-EW
Non-sticky! Refreshing, smooth mist. Ideal mist fan for heatstroke and static electricity prevention in areas where open flames are prohibited.
**Merits** - Ideal for heatstroke measures at gas filling stations - Maximum cooling of minus 8 degrees Celsius (−8℃) improves work efficiency in hot and humid environments - Can be safely used in explosion-proof areas since the power source is air - High water-saving function allows for usage while conserving water - By adjusting the valve opening, it can operate for about 8 hours on 1 liter **Features** - Dedicated container included as a substitute for the tank - Compatible with large 10-liter water tanks and servers - Circulator and oscillation function enable wide-area cooling, ventilation, and air blowing - Mist and airflow adjustment with a needle valve - Two types available, 18 type and 24 type, depending on the "site" or "application"
Inquire About This Product
Related Videos
basic information
<Specifications> Model: ACM-AW/ACM-EW Compatible Drive Source: Air-operated only/Electric-operated only (Main unit is air-driven) Water Supply Method: Connection to water hose (Inner diameter: φ12–φ15 / Outer diameter: φ20 or less) Nozzle Type: Two-fluid Mist Spray Volume: Adjustable Water Consumption/1h: Valve opening (90 degrees: 12L / 1mm: 0.09L / 2mm: 0.96L) Compressor Horsepower: 3 Operating Air Pressure (MPa): 0.3–0.6 Operating Water Pressure (MPa): 0.15–0.5 Air Consumption (m3/min): 0.33 Air Connection Port: Air coupler plug (male) Liquid Contact Material: Main Unit: POM/SUS/Water-resistant polyurethane/U-PVC/PBT/PVFM Packing: NBR/EPDM Accessories: Steel plate (65×45mm)/8 cable ties/Water switch holder/Hose band Weight (kg): 1.0
Price range
Delivery Time
Applications/Examples of results
《Uses》 ■Heat stroke prevention ■Improving efficiency in dry work ■Air circulation in high-temperature areas and drying rooms ■Can be used in high temperature and humidity (Temperature: 0–60°) *Please consult separately for other environmental conditions 《Applications》 Not only in chemical plants, painting factories, automobile transport ships, and shipyards, but also in tunnel construction and as a replacement for explosion-proof fans for ventilation in underground LP gas tanks, as well as installed in manholes on ships and decks, the applications are diverse.
Detailed information
-
ACM-AW (for air-operated factory fans)
-
ACM-EW (for electric factory fan)
-
A factory with heat retention; ideal for heatstroke prevention.
-
Electrostatic measures for chemical plants.
-
Image of a blower in the workplace *Some explanations are provided with products of different models in the photos and illustrations, but they are all the same in terms of purpose and content.
