Manufacturing useful fine-pore ceramics for spinning guide.
In the fiber industry, high precision in guides is required to transport and align threads stably. This is especially true for ultra-fine fibers and high-speed production lines, where the dimensional accuracy and surface quality of guide grooves and threading sections are directly linked to product quality. Uneven shapes and dimensional variations can lead to thread breakage, fraying, and variations in quality. Our company applies core technologies developed in writing instrument manufacturing, such as mixing, extrusion molding, and firing, to produce high-precision ceramic guides tailored to customer needs. Thanks to the excellent wear resistance unique to ceramics, we can maintain stable performance over long periods, while the smooth surface reduces damage to the threads through low friction, contributing to high-quality fiber production. 【Application Scenarios】 - Applications requiring precise thread transport and positioning - Production lines demanding uniform thread quality - Manufacturing processes for ultra-fine and specialty fibers - Equipment involving high-speed thread movement 【Benefits of Implementation】 - Increased lifespan and reduced replacement frequency due to excellent wear resistance - Improved product yield - Promotion of the development of new fiber products
Inquire About This Product
basic information

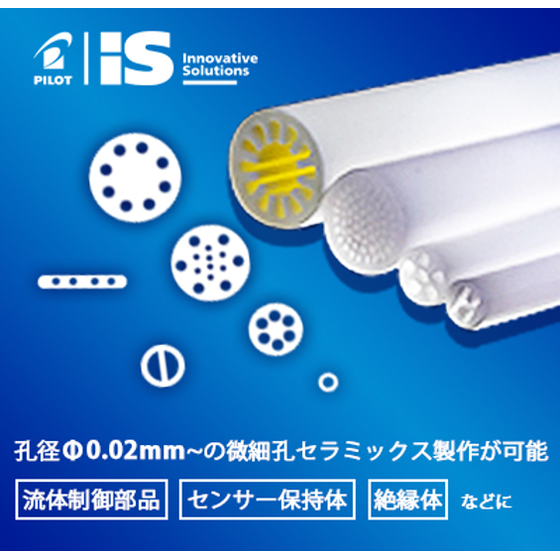

**Features** - Capable of producing fine hole ceramics with a minimum hole diameter of φ0.02mm - Achieves high precision with a dimensional tolerance of ±5% - Supports the production of long products with an aspect ratio of 200 or more - Capable of producing multiple holes and irregularly shaped holes - Compatible with high-purity alumina, zirconia, and aluminum nitride materials **Our Strengths** Pilot Corporation has been providing fine ceramics that are fine and highly precise by applying core technologies cultivated over more than 100 years in writing instrument manufacturing. With years of experience and unique extrusion molding technology, we achieve high dimensional accuracy for fine and deep holes of less than 1mm, which are difficult to process with drilling or laser machining. We manufacture according to the optimal specifications based on customer drawings. Our products have been adopted in various industrial fields such as semiconductors, automotive, and communication equipment for over 40 years.
Price range
Delivery Time
Applications/Examples of results
*For more details, please refer to the materials. Feel free to contact us as well.*
catalog（1）
Download All Catalogs![Fine Ceramics [Product Catalog]](https://image.mono.ipros.com/public/catalog/image/01/74a/269584/IPROS6244566099129822561.jpeg?w=120&h=170)
Company information
Pilot Corporation is a comprehensive writing instrument manufacturer that produces and sells fountain pens, ballpoint pens, mechanical pencils, markers, and other writing instruments. In addition, the company also develops businesses that apply its writing instrument manufacturing technology to stationery such as diaries and notebooks, toys, rings, and ceramic products. With a long history of delivering writing instruments to people all over the world for over 100 years, our writing instruments are currently used in more than 190 countries and regions worldwide. By utilizing the "technology derived from writing" that we have cultivated over the past 100 years, we aim to support people, society, and culture in areas beyond "writing."
