ONE-HAND MIXING

last updated：Jul 30, 2026

ペルノックス

For repairing disconnections and contacts in equipment used at low temperatures. Just press to automatically mix the two components, allowing for easy electrical connections at room temperature without the need for solder.

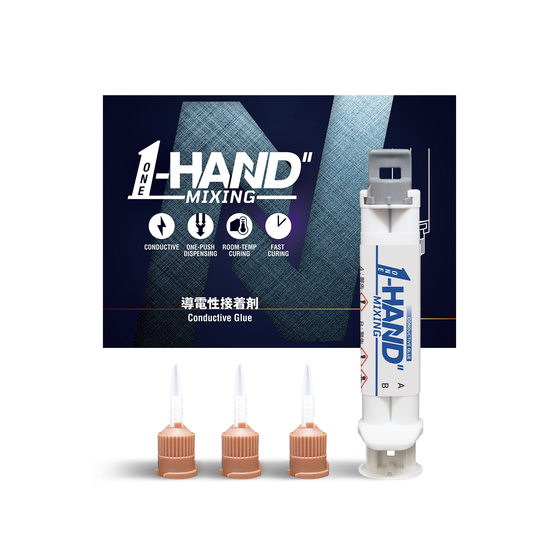

For repairing poor conductivity or disconnections in equipment and facilities used in cold environments. It has been confirmed that the adhesive layer functions stably even in environments where rapid temperature changes occur, avoiding solder heat with room temperature curing. This expands options for maintenance and on-site repairs. ONE-HAND MIXING is a product that allows for the automatic mixing and dispensing of a two-component conductive epoxy adhesive with silver filler using a dedicated cartridge and mixer nozzle. - No weighing or mixing work is required, reducing variability in the mixing ratio by the operator. - It cures at room temperature, making it suitable for conductive connections around heat-sensitive resin parts, FPCs, LEDs, and sensors. - Conductive bonding is possible without using a soldering iron, even with materials that are difficult to solder, such as glass, resin, aluminum, and stainless steel. - It retains flexibility after curing, making it usable for repairs and connections in areas subjected to bending and vibration. *For detailed data, please check the TDS and special website.

Inquire About This Product

basic information

Sales format: ◎ Disposable 3-piece set ◎ Large capacity type (one bottle filled with liquid equivalent to more than 3 disposable units) Main characteristics (representative values): ■ Color: Silver-gray ■ Tack-free time (25°C): Approximately 2 hours ■ Resistance value appearance time (25°C): More than half a day ■ Resistance value stabilization time (25°C): More than 2 days ■ Volume resistivity at stabilization: 2E-4 Ω·cm ■ Adhesive strength (25°C): Cu 5MPa, Al 6MPa, SUS 6MPa, FR-4 5MPa, ABS 4MPa ■ Recommended shelf life: 6 months after purchase At low temperatures, the reaction slows down. Please ensure sufficient curing time until the resistance value stabilizes. Heating with a hairdryer or similar after application can speed up the stabilization of the resistance value.

Price information

Regular price: 9,980 yen/set ~ Now on sale at Amazon Japan and the ONE-HAND MIXING special site! *Purchasing through the ONE-HAND MIXING special site is more advantageous.

Price range

Delivery Time

Applications/Examples of results

■ Conductive connections to avoid solder heat LEDs, sensors, FPCs, resin parts, external conductors of coaxial cables, etc. ■ Repair of circuit boards and electronic components Repair of peeled circuit board patterns, disconnection recovery without using jumper wires, creation and repair of circuit patterns ■ Repairs for automobiles and outdoor use Repair of disconnections in rear defroster heating wires, repair of peeled terminal tabs, conductive connections at sites where soldering irons cannot be brought in ■ Research, development, and prototyping Conductive connections for experimental devices and measurement jigs, conductive connections for parts used in ultra-low temperature environments, grounding materials for circuit boards

Detailed information

Complete conductive bonding and repairs on-site without applying soldering heat.
One-handed push. Automatically mixes the two components and can be applied immediately.
No measuring or hand mixing required. Just press to mix, conduct, and bond all at once.
Maintains stable conductivity and adhesion even in environments subjected to temperature changes and vibrations.
Supports a wide range of repair scenarios from substrates to automobiles to research and development.
