ONE-HAND MIXING

last updated：Jul 30, 2026

ペルノックス

Form a conductive pattern as if drawing a line. Just by pressing, the two liquids are automatically mixed, allowing for easy conductive connections at room temperature without the need for solder.

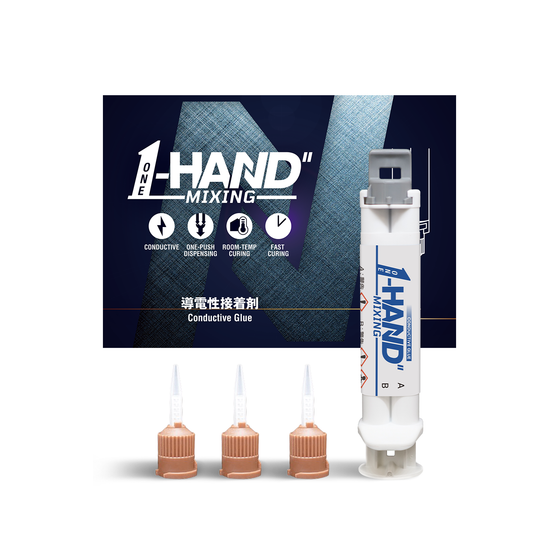

This product is intended for applications where you want to form conductive pathways on surfaces or flexible substrates, similar to drawing lines. It allows for the formation of conductivity at room temperature, even on substrates that are difficult to solder, thereby expanding the design freedom for circuit design in prototypes, demonstration units, and wearable considerations. ONE-HAND MIXING is a product that allows for the automatic mixing and dispensing of a two-component conductive epoxy adhesive containing silver fillers using a dedicated cartridge and mixer nozzle. - No weighing or mixing work is required, reducing variability in the mixing ratio by the operator. - It cures at room temperature, making it suitable for conductive connections around heat-sensitive resin parts, FPCs, LEDs, and sensors. - Conductive adhesion is possible on materials that are difficult to solder, such as glass, resin, aluminum, and stainless steel, without using a soldering iron. - It retains flexibility after curing, making it usable for repairs and connections in areas subject to bending and vibration. *For detailed data, please check the TDS and the special website.

Inquire About This Product

basic information

Sales format: ◎ Disposable 3-piece set ◎ Large capacity type (one bottle filled with liquid equivalent to more than three disposable units) Main characteristics (representative values): ■ Color: Silver-gray ■ Tack-free time (25°C): Approximately 2 hours ■ Resistance value appearance time (25°C): More than half a day ■ Resistance value stabilization time (25°C): More than 2 days ■ Volume resistivity at stabilization: 2E-4 Ω·cm ■ Adhesive strength (25°C): Cu 5MPa, Al 6MPa, SUS 6MPa, FR-4 5MPa, ABS 4MPa ■ Recommended shelf life: 6 months after purchase At low temperatures, the reaction slows down. Please ensure sufficient curing time until the resistance value stabilizes. Heating with a dryer or similar device after application can accelerate the stabilization of the resistance value.

Price information

Regular price: 9,980 yen/set ~ Now on sale at Amazon Japan and the ONE-HAND MIXING special site! *Purchasing through the ONE-HAND MIXING special site is more advantageous.

Price range

Delivery Time

Applications/Examples of results

■ Conductive connections to avoid solder heat LEDs, sensors, FPCs, resin parts, external conductors of coaxial cables, etc. ■ Repair of circuit boards and electronic components Repair of peeled circuit board patterns, restoration of broken connections without using jumper wires, creation and repair of circuit patterns ■ Repairs in automotive and outdoor settings Repair of broken heating wires in rear defrosters, repair of peeled terminal tabs, conductive connections in locations where soldering irons cannot be brought in ■ Research, development, and prototyping Conductive connections for experimental devices and measurement jigs, conductive connections for parts used in ultra-low temperature environments, grounding materials for circuit boards

Detailed information

Complete conductive bonding and repair on-site without applying solder heat.
One-handed push. Automatically mixes the two components and can be applied immediately.
No measuring or hand mixing required. Just press to mix, conduct, and bond all at once.
Maintains stable conductivity and adhesion even in environments subjected to temperature changes and vibrations.
Supports a wide range of repair scenarios from substrates to automobiles and research and development.
