Laser marker for printed circuit boards with reading verification linked to AI appearance inspection.

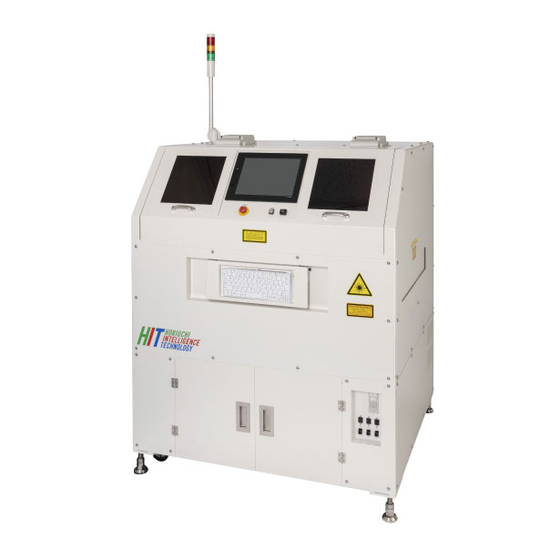

LMS-K500ML (Inline CO2 Laser Marker / Printing Read Verification with Image Processing and AI Appearance Inspection Integration)
Don't just print and be done. Link the AI visual inspection judgment to the ID of each individual circuit board.
The judgment data obtained from AI visual inspection and image analysis can only be utilized once it is possible to identify "which board it belongs to." The LMS-K500ML is an inline CO2 laser marker with reading verification that prints a unique ID (2D code or text) on the board, and the built-in image processing camera reads this printout to determine pass or fail. 【Usage Scenarios】 - Automatic reading and verification of printed content by the image processing camera is completed on the line. - Collaborates with the AI visual inspection system to link judgment data to the unique ID of each board. - Accumulates inspection and analysis data on an individual basis to create a foundation for trend analysis. 【Benefits of Implementation】 - Stops non-conforming products within the process, preventing unidentified boards from being released. - Allows tracking of AI inspection results on a board-by-board basis, utilizing the data for analysis. - Reduces visual checks and manual record-keeping, ensuring the objectivity of inspection records.
Inquire About This Product
basic information
This is a device specification equipped with an image processing system, based on the premise of collaboration with AI visual inspection and reading verification after printing. 【Features】 - Standard equipped with image processing camera and image processing controller (Keyence products) - Combines three functions: code reading, alignment, and front/back identification in one unit - Executes reading judgment of printed 2D codes within the device, displaying errors and regulating output in case of NG - Equipped with LAN port and USB port to send judgment results and logs to higher-level systems - The maximum board size that can be read and processed is 380×280mm, with a thickness of 0.6 to 2.2mm 【Our Strengths】 Approximately 30 years of experience in laser printing and traceability. Made in Japan, minimizing the risk of technical information leakage. We offer free test printing (work tests) on actual boards.
Price information
For more details, please contact us.
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
