ONE-HAND MIXING

last updated：Jul 30, 2026

ペルノックス

Simultaneously and safely bond components and conduct electricity. With just a push, two liquids are automatically mixed, allowing for easy electrical connections at room temperature without the use of solder.

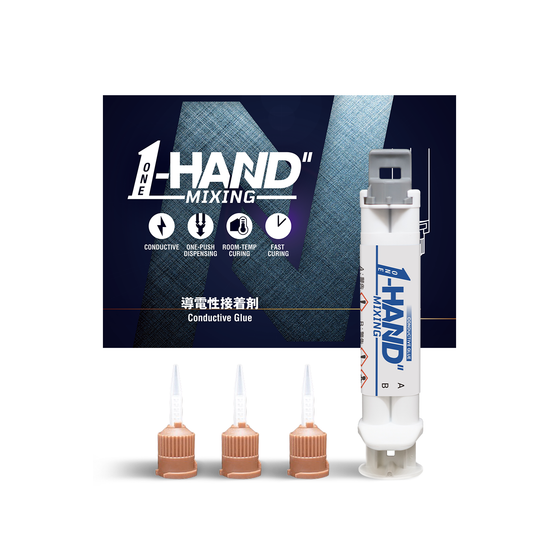

As a conductive adhesive that allows for simultaneous bonding and electrical conduction without using a soldering iron, it is suitable for electronics projects and circuit board repairs. Since there is no heating process, it reduces the risk of burns, enabling even those who are not skilled at soldering to make electrical connections. ONE-HAND MIXING is a product that automatically mixes and dispenses a two-component conductive epoxy adhesive with silver filler using a dedicated cartridge and mixer nozzle. - No weighing or mixing is required, which helps to suppress variations in the mixing ratio by the operator. - It cures at room temperature, making it suitable for electrical connections in heat-sensitive resin parts, FPCs, LEDs, and sensor areas. - Conductive bonding is possible without using a soldering iron, even with materials that are difficult to solder, such as glass, resin, aluminum, and stainless steel. - It retains flexibility after curing, allowing it to be used for repairs and connections in areas subject to bending and vibration. *For detailed data, please check the TDS and the special website.

Inquire About This Product

basic information

Sales format: ◎ Disposable 3-piece set ◎ Large capacity type (one bottle filled with more than the equivalent of three disposable bottles of liquid) Main characteristics (representative values): ■ Color: Silver-gray ■ Tack-free time (25°C): Approximately 2 hours ■ Resistance value appearance time (25°C): More than half a day ■ Resistance value stabilization time (25°C): More than 2 days ■ Volume resistivity at stabilization: 2E-4 Ω·cm ■ Adhesive strength (25°C): Cu 5MPa, Al 6MPa, SUS 6MPa, FR-4 5MPa, ABS 4MPa ■ Recommended shelf life: 6 months after purchase At low temperatures, the reaction slows down. Please ensure sufficient curing time until the resistance value stabilizes. Heating with a hairdryer or similar after application can accelerate the stabilization of the resistance value.

Price information

Regular price: 9,980 yen/set ~ Now on sale at Amazon Japan and the ONE-HAND MIXING special site! *Purchasing through the ONE-HAND MIXING special site is more advantageous.

Price range

Delivery Time

Applications/Examples of results

■Conductive connections to avoid solder heat LEDs, sensors, FPCs, resin parts, external conductors of coaxial cables, etc. ■Repair of circuit boards and electronic components Repair of peeled circuit board patterns, disconnection recovery without using jumper wires, creation and repair of circuit patterns ■Repairs in automotive and outdoor settings Repair of broken heating wires in rear defrosters, repair of detached terminal tabs, conductive connections in locations where soldering irons cannot be brought in ■Research, development, and prototyping Conductive connections for experimental devices and measurement jigs, conductive connections for parts used in ultra-low temperature environments, grounding materials for circuit boards

Detailed information

Complete conductive bonding and repair on the spot without applying soldering heat.
One-handed push. Automatically mixes the two components and can be applied immediately.
No measuring or manual mixing required. Just press to mix, conduct, and bond all at once.
Maintains stable conductivity and adhesion even in environments subjected to temperature changes and vibrations.
Supports a wide range of repair scenarios, from substrates and automobiles to research and development.
