ONE-HAND MIXING

last updated：Jul 30, 2026

ペルノックス

Storage at room temperature is acceptable. A material with low management burden. Automatically mixes two components with just a push, allowing for easy connections at room temperature where solder cannot be used.

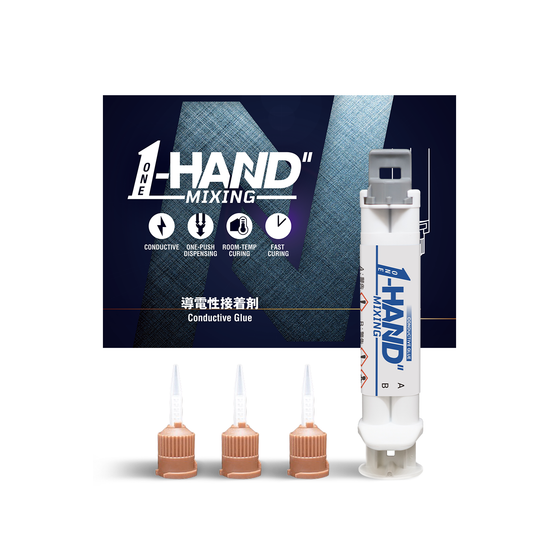

This is a conductive adhesive that does not fall under the category of pharmaceutical-grade hazardous substances and complies with RoHS and REACH regulations. It can be stored at room temperature, eliminating the need for refrigeration or freezing, which reduces the burden of storage, transportation, and management in universities, research institutions, and corporate environments. ONE-HAND MIXING is a product that allows for the automatic mixing and dispensing of a two-component conductive epoxy adhesive containing silver fillers using a dedicated cartridge and mixer nozzle. - No weighing or mixing is required, which minimizes variations in the mixing ratio by the operator. - It cures at room temperature, making it suitable for conductive connections in heat-sensitive resin parts, FPCs, LEDs, and sensor areas. - It enables conductive bonding to materials that are difficult to solder, such as glass, resin, aluminum, and stainless steel, without the use of a soldering iron. - It retains flexibility after curing, allowing for repairs and connections in areas subject to bending and vibration. *For detailed data, please refer to the TDS and the special website.

Inquire About This Product

basic information

Sales format: ◎ Disposable 3-piece set ◎ Large capacity type (one bottle filled with liquid equivalent to more than three disposable units) Main characteristics (representative values): ■ Color: Silver-gray ■ Tack-free time (25°C): Approximately 2 hours ■ Resistance value appearance time (25°C): More than half a day ■ Resistance value stabilization time (25°C): More than 2 days ■ Volume resistivity at stabilization: 2E-4 Ω·cm ■ Adhesive strength (25°C): Cu 5MPa, Al 6MPa, SUS 6MPa, FR-4 5MPa, ABS 4MPa ■ Recommended shelf life: 6 months after purchase At low temperatures, the reaction slows down. Please ensure sufficient curing time until the resistance value stabilizes. Heating with a hairdryer or similar after application can expedite the stabilization of the resistance value.

Price information

Regular price: 9,980 yen/set ~ Now on sale at Amazon Japan and the ONE-HAND MIXING special site! *Purchasing through the ONE-HAND MIXING special site is more advantageous.

Price range

Delivery Time

Applications/Examples of results

■ Connections to avoid solder heat LEDs, sensors, FPCs, resin parts, external conductors of coaxial cables, etc. ■ Repair of circuit boards and electronic components Repair of peeled circuit board patterns, restoration of broken connections without using jumper wires, creation and repair of circuit patterns. ■ Repairs in automotive and outdoor settings Repair of broken heating wires in rear defrosters, repair of detached terminal tabs, connections in locations where soldering irons cannot be brought in. ■ Research, development, and prototyping Conductive connections for experimental devices and measurement jigs, conductive connections for parts used in ultra-low temperature environments, grounding materials for circuit boards.

Detailed information

Complete conductive bonding and repairs on the spot without applying soldering heat.
One-handed push. Automatically mixes the two components and can be applied immediately.
No measuring or hand mixing required. Just press to mix, conduct, and bond all at once.
Maintains stable conductivity and adhesion even in environments subjected to temperature changes and vibrations.
Supports a wide range of repair scenarios, from substrates and automobiles to research and development.
