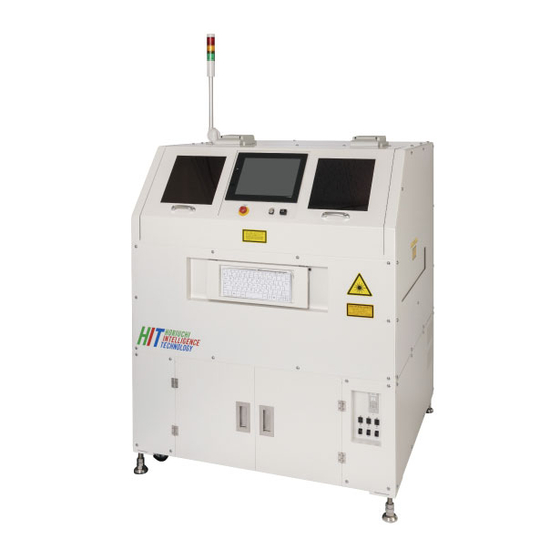

LMS-K500ML (Inline CO2 Laser Marker / Support for Linking Measurement Data by Board within the Process)

last updated：Jul 30, 2026

Horiuchi Electronics Co., Ltd. Development Division

Link the measurement data to the unique ID of the circuit board to ensure that the measurement values are reliably associated with the specific board.

If the measurement values obtained within the process cannot be linked to a specific circuit board, they cannot be utilized later. The LMS-K500ML is an inline CO2 laser marker that directly marks a unique ID (2D code or text) on the circuit board at the very beginning of the SMT assembly line, creating a foundation for receiving measurement and data on a per-board basis. 【Scenes for Utilizing Unique IDs through Laser Printing】 - Recording measurement data such as dimensions, appearance, and electrical characteristics linked to the unique ID of the circuit board - Ensuring traceability of measurement results within the process - Consistent management of the line through integration with measurement and inspection equipment 【Benefits of Implementation】 - Connecting measurement values that were previously fragmented by process into a chronological history for each circuit board - Early detection of changes in process conditions based on trends in measurement results - Eliminating data mix-ups and transcription errors, ensuring the reliability of measurement records

Inquire About This Product

basic information

【Features】 - The XY stage has a stroke of 550mm on the X-axis and 300mm on the Y-axis, with a maximum speed of 960mm/sec. - Alignment of the substrate is performed using an image processing camera, with automatic correction of the printing position. - The substrate width is automatically adjusted to a pre-set specified width. - The transport height is 900±30mm from the floor, and leveling adjustments can be made with a level adjuster. - Equipped with LAN and USB ports for sending logs to higher-level systems. - The target substrate can be a maximum of 380×280mm and a minimum of 50×50mm, with a thickness of 0.6 to 2.2mm and a weight of up to 800g. 【Our Strengths】 Approximately 30 years of experience in laser printing and traceability. Made in Japan, minimizing the risk of technical information leakage. We offer free test printing (work tests) on actual substrates.
