A laser marker that prints a unique substrate ID that serves as the starting point for PLM/PDM.

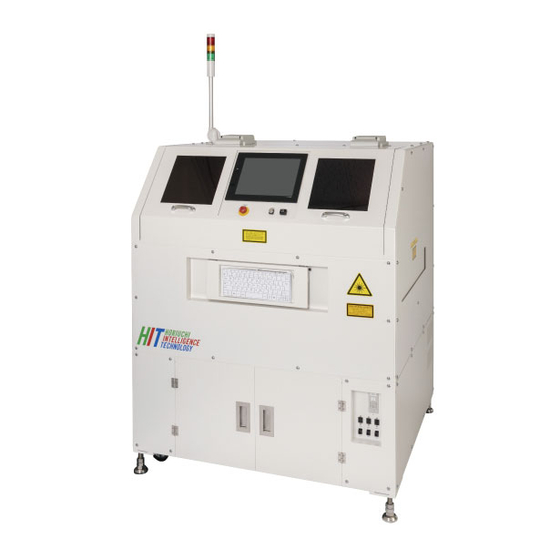

LMS-K500ML (Inline CO2 Laser Marker / Supports Board Unique ID Assignment with PLM and PDM Integration)
The starting point for managing data of electronic and electrical products is the laser printing of unique IDs on the circuit board. Serial numbers, dates, and manufacturing lines are printed using text or two-dimensional codes.
Even if product data is centrally managed with PLM/PDM, a unique ID for each board is necessary to connect that information to the on-site circuit boards. The LMS-K500ML is an inline CO2 laser marker that directly prints a unique ID (2D code and text) on the circuit boards at the very beginning of the SMT assembly line, serving as the starting point for product lifecycle management. 【Usage Scenarios】 - Assigning a unique ID to each circuit board as the starting point for product lifecycle management - Identifying each stage of design, manufacturing, and maintenance with the same unique ID - Building a foundation for traceability that connects the PLM/PDM system with the circuit boards 【Benefits of Implementation】 - It becomes easier to link drawings and parts lists with the on-site circuit boards through unique IDs - Design changes and lot information can be easily traced back to the relevant circuit boards - After printing, the 2D code is read and verified, preventing unidentified circuit boards from moving to the next process.
Inquire About This Product
basic information
This is the equipment specification for assigning unique IDs to circuit boards, assuming integration with PLM and PDM systems. 【Features】 - Equipped with Keyence 3-axis CO2 laser marker ML-Z9600 series (30W) for high-speed and high-quality printing over a wide area. - Supports alphanumeric characters, kanji, 2D and 1D codes, sequential numbers, and timestamps to assign unique IDs. - Standard features include high-performance image processing for XY position correction, front and back identification, and 2D code reading judgment. - Integration with MES and traceability databases, supporting multiple languages (Japanese, English, Chinese). - Compatible materials include resin-based substrates such as FR-4, CEM-3, and paper phenol, with a thickness of 0.6 to 2.2 mm. - Operates with complete airless design and only requires AC100V connection (200V specification is also possible). No ink or labels are needed, resulting in zero consumables. 【Our Strengths】 Approximately 30 years of experience in laser printing and traceability. Made in Japan, minimizing the risk of technical information leakage. We offer free test printing on actual circuit boards (work tests).
Price information
For more details, please contact us.
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
